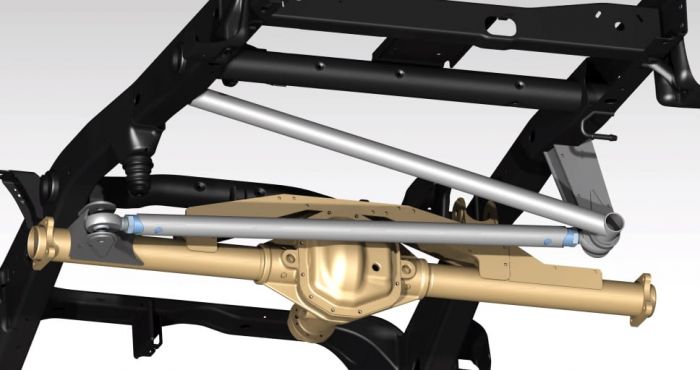

GMT900/800/Jeep Panhard/Track Bar Chassis and Housing Plasma Table Friendly Brackets
The plasma table friendly design allows you to cut this setup on a plasma table and assemble everything with relative ease.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Panhard / Track Bar Mounts |
| Position | Chassis-side vs housing-side (panhard / link mounts) |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are designed for a 1.25" rod end on a 3/4" bolt. So make sure your panhard/track bar is running that combo before you cut these.
They're weld-on. The design is set up to weld to just about any frame and axle housing, so you'll cut the plates, assemble, and burn them in where you need them.
Yeah, these are made to be plasma table friendly, so you can run the DXF on your plasma. They'll also cut fine on a laser or waterjet if that's what you've got, and a couple plates need a press bend.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The GMT900/800/Jeep Panhard/Track Bar Chassis and Housing Plasma Table Friendly Brackets is $38.00.
This GMT900/800/Jeep Panhard/Track Bar Chassis and Housing Plasma Table Friendly Brackets is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Jeep Gladiator Rear End Components plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Jeep Gladiator Rear End Components category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Jeep Gladiator, including Jeep Gladiator Rear End Components, all designed by working fab shops. Browse the Jeep Gladiator section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
