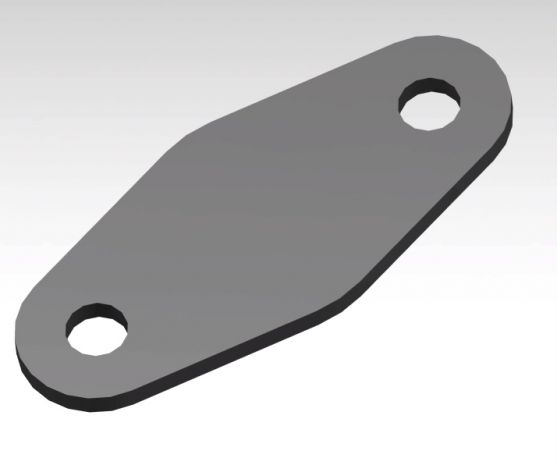

TUBE OVAL CAGE MOUNT PLATE
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | JEH Consulting INC |
|---|
Specifications
| Platform | Tube-chassis / roll cage (generic round-tube build) |
|---|---|
| Part Family | Roll Cage Mount / Foot Plates |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
Cut them from .25" thick material and use 5/8" bolts for the mounting plates. That's how they're designed to keep the strength.
The ideal setup is running two plates with your tubes between them, so the plates sandwich a panel or floor section. Just follow the WPO steps to keep the strength right.
Yep, these are Plasma Table Friendly with little to no bends, so they're basically all flat plate and easy to cut and assemble. You'll get the DXF (or CAD) files to run on a CNC plasma, laser, or waterjet.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The TUBE OVAL CAGE MOUNT PLATE is $3.00.
This TUBE OVAL CAGE MOUNT PLATE is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Cage Mount Plates plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Cage Mount Plates category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Mounts and Accessories, including Cage Mount Plates, all designed by working fab shops. Browse the Mounts and Accessories section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
