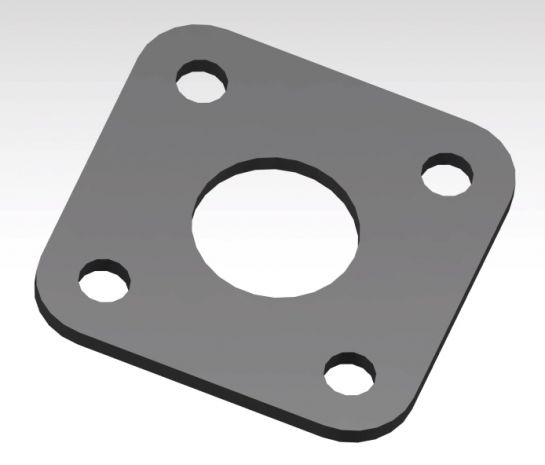

2" TUBE SQUARE CAGE MOUNT PLATE (CUTOUT)

$3.00

In stock

SKU

100-JEH-024

These plates are designed for use in fabricating roll cages in various project vehicles, ideally you cut them from .25” thick material and use 5/8” bolts for the mounting plates. The ideal way to use these is with two plates and tubes between them, so the plates sandwich a panel or floor section.

PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.

***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

More Information
Seller	JEH Consulting INC

Frequently Asked Questions

What thickness should I cut these cage mount plates from and what size bolts do they take?

Cut them from .25" thick material and run 5/8" bolts for mounting. That's the ideal setup these were designed around.

Do these need bending or can I just run them flat off my plasma table?

These are flat plate (PTF - Plasma Table Friendly), so no bends - they cut clean off a plasma, laser, or waterjet. Just follow the WPO steps to keep the strength right when you assemble.

How are these meant to mount up to a floor or panel in my build?

The ideal way is to use two plates with tube between them so they sandwich a panel or floor section. That gives you a solid mounting point for your cage tubing.

How do I get the 2" TUBE SQUARE CAGE MOUNT PLATE (CUTOUT) after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the 2" TUBE SQUARE CAGE MOUNT PLATE (CUTOUT) cost?

The 2" TUBE SQUARE CAGE MOUNT PLATE (CUTOUT) is $3.00.
