Stage 1 Race/Play Roller Chassis from JEHC

Stage 1 Race/Play Roller Chassis from JEHC

Rating:

93 % of 100

6 Reviews Add Your Review

$8,000.00

In stock

SKU

600-JEH-015

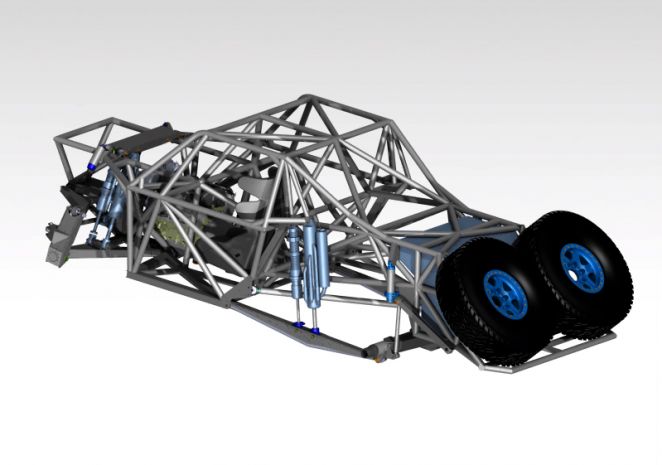

The industries first DIY Race/Play chassis assembly, designed to be plasma table and fabrication friendly, making this the perfect build for someone who has never built a tube chassis vehicle before.

Designed for MIG welding this setup is also the least investment to build (least laser cutting cost).

***Due to the complexity of these assemblies a representative from JEHC LLC will be reaching out to you personally upon purchase***

Details

Each DIY Chassis package comes with the following Cutfiles:

Tube chassis cutting files for a tube laser, Front suspension assembly, Rear suspension assembly including rear end housings (3.5" and 4"), Bulkhead/floor/rear pivot boxes, shock mounts, bump stop mounts, and rear sway bar assembly.

EASM files of the chassis and all suspension components are also provided to aid in assembly/fabrication of the truck.

Chassis: This chassis is designed out various material diameters and thickness, mostly .120 wall and .095 wall for ease in MIG welding. The DIY series of trucks are SCORE/BITD race legal.

We have three chassis options available:

Midsize/7200 - This platform will fit up to an LS3/7 and is 118" wheelbase by 85" trackwidth.

Fullsize (lite) 6100 - This platform is designed for 6100 racing and is 120" wheelbase by 90-91" trackwidth

Fullsize Trophy Truck - This platform is designed for Trophy Truck racing and is 125" wheelbase by 94" trackwidth.

Y-Frame: The section of the chassis that locates the front and rear suspension including the floor. This Y-Frame is designed to be fabrication friendly for MIG welding and can be cut from mild steel. All the Y-Frame components feature simple snap together construction for ease in fabrication.

Suspension: This package includes Stage1 Suspension from JEHC INC. All the components are designed to be fabrication friendly and perfect for someone who has never built a vehicle like this before. All the components utilize a very simple snap together style that favors MIG welding. This setup is also designed for those who will be cutting everything from mild steel, so some of the components are slightly heavier than the Stage2/3 suspension setups from JEHC . You can also cut the components from 4130 and TIG weld them is you prefer.

Steering: The DIY trucks are designed around Howe Steering Racks, 103 for the narrower trucks and 113 for the fullsize trucks.

Fuel Cell and Spare Tire Setup - The DIY Stage 1 trucks are designed around off the shelf Fuel Safe cells with spare tires mounts above the cell (almost flat). Different cell options and layouts are also available upon request.

Rear End Housing Setup - Each DIY truck comes with 3.5 and 4" housing files but the trucks will fit a variety of rear end housings from Camburg, BMS, Currie, Tubeworks, ID, and others.

***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Tube-chassis / roll cage (generic round-tube build)
Part Family	Y-Frame / H-Frame / Roller Chassis / Center Assemblies
Build System	Stage 1 / Stage 2 / Stage 3 complexity tier

Frequently Asked Questions

Is this a full chassis kit of cut files, or do I still need to source a bunch of stuff separately to finish the build?

This is the Stage 1 roller chassis assembly designed to be plasma table and fab friendly, so you'll be cutting the files and supplying your own tube and consumables to weld it together. Since these assemblies are complex, a rep from JEHC will reach out to you personally after you buy to walk you through what you need.

I've never built a tube chassis before, is this setup actually doable for a first-timer?

Yep, that's exactly who this one's built for, it's the industry's first DIY race/play chassis designed to be plasma table and fabrication friendly for someone who's never built a tube chassis vehicle. JEHC will also reach out to you directly after purchase to help guide you through the build.

Are these set up for MIG welding or do I need a TIG setup to weld this thing together?

This setup is designed for MIG welding, so you don't need a TIG machine to put it together. It's also the least laser cutting cost of the lineup, so it's the lowest investment to build.

How do I get the Stage 1 Race/Play Roller Chassis from JEHC after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the Stage 1 Race/Play Roller Chassis from JEHC cost?

The Stage 1 Race/Play Roller Chassis from JEHC is $8,000.00.

Who designs the Stage 1 Race/Play Roller Chassis from JEHC?

This Stage 1 Race/Play Roller Chassis from JEHC is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Roller Chassis Assemblies From JEHC INC?

DIY Off Road has downloadable DXF cut files for Roller Chassis Assemblies From JEHC INC plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Roller Chassis Assemblies From JEHC INC category, or shoot us an email and we will point you to the right files for your build.

Do you have Race/Play Chassis Components cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including Roller Chassis Assemblies From JEHC INC, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
