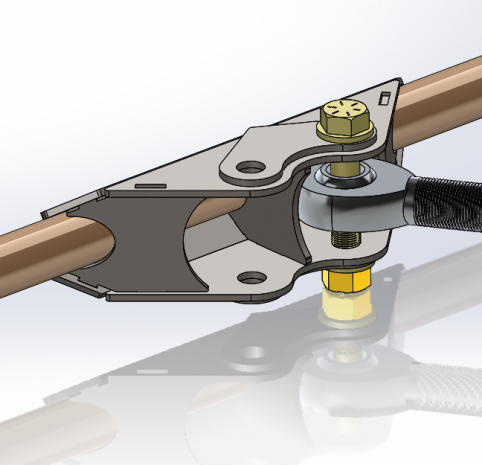

TRIANGULATED VERTICAL BOLT CENTER LINK MOUNT - 1.5" TUBE - 3/4" BOLT
***These products are Digital Assets. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Triangulated / Single / Vertical Link Pivot Mounts (chassis tube weld-on) |
| Position | Single-shear vs double-shear / vertical vs horizontal bolt orientation |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are designed for 1.5" tube with a 3/4" bolt. The plates come coped so they sit clean on the round tubing without a bunch of fitting.
The plates and overlays are designed for 3/16" material. They're plasma table friendly with no bends, so it's all flat plate and easy to cut and assemble.
You're buying the DXF cut files only, no physical part ships. Run them on your CNC plasma, laser, or waterjet to cut the plates, then assemble per the WPO to keep the strength right.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The TRIANGULATED VERTICAL BOLT CENTER LINK MOUNT - 1.5" TUBE - 3/4" BOLT is $18.00.
This TRIANGULATED VERTICAL BOLT CENTER LINK MOUNT - 1.5" TUBE - 3/4" BOLT is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 1.25" Rod End Vertical Triangulated Link Mounts - PTF plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 1.25" Rod End Vertical Triangulated Link Mounts - PTF category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Tube Chassis Link Mounts, including 1.25" Rod End Vertical Triangulated Link Mounts - PTF, all designed by working fab shops. Browse the Tube Chassis Link Mounts section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
