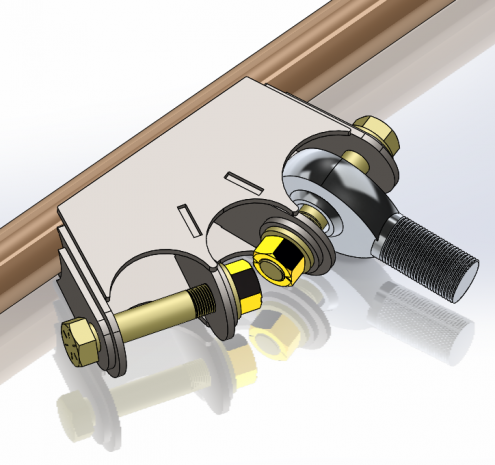

TRIANGULATED LOWER 34* LINK PIVOT - 1.75" ROUND TUBE - 9/16" HOLE
These triangulated lower link mounts are PTF and feature no bends. Using 3/16" material for the plates and overlays, these files are fabrication-friendly and coped to seamlessly mount to round tubing. Designed by JEHC
***These products are Digital Assets. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Triangulated / Single / Vertical Link Pivot Mounts (chassis tube weld-on) |
| Position | Straight (0 deg) vs angled (10 / 20 / 34 / 45 deg) mount geometry |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
They're already coped to seamlessly mount to round tubing, designed specifically for 1.75" round tube. So no extra notching needed, just run the files and they'll sit on the tube clean.
These are PTF (Plasma Table Friendly) with no bends, all flat plate. Cut them out, follow the WPO, and you're good to weld up, no press needed.
The plates and overlays are designed for 3/16" material, and they're set up for a 9/16" hole. Stick to those and the file lines up like it's supposed to.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The TRIANGULATED LOWER 34* LINK PIVOT - 1.75" ROUND TUBE - 9/16" HOLE is $18.00.
This TRIANGULATED LOWER 34* LINK PIVOT - 1.75" ROUND TUBE - 9/16" HOLE is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 1.25" Rod End Horizontal Triangulated Link Mounts - PTF plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 1.25" Rod End Horizontal Triangulated Link Mounts - PTF category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Tube Chassis Link Mounts, including 1.25" Rod End Horizontal Triangulated Link Mounts - PTF, all designed by working fab shops. Browse the Tube Chassis Link Mounts section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
