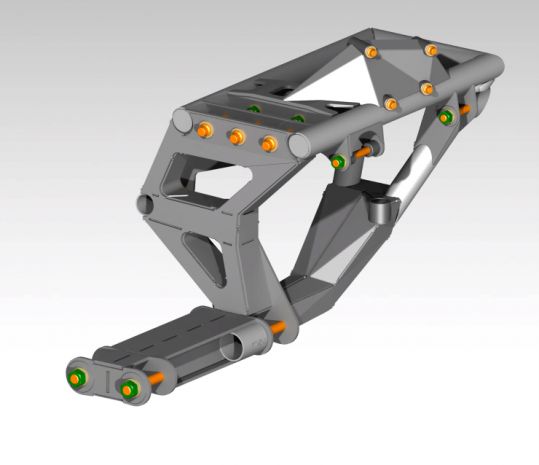

Stage 2 Swinger Steering Centermount Bulkhead CAD files for PSS Steering Box and ID Designs Ram

Stage 2 Swinger Steering Centermount Bulkhead CAD files for PSS Steering Box and ID Designs Ram

Be the first to review this product

$1,800.00

In stock

SKU

600-JEH-131-CAD

This bulkhead CAD file is perfect for those who want to design their own Suspension setup based off the geometry of a professionally setup centermount. It features a steering rack mount for a Power Steering Solutions Box and ID Designs Ram. In the model you will also find the locations for the steering Box/Swingers so that you can either design a billet or sheetmetal swinger system that perfectly matches the bulkhead. Delivered as a STEP file this universal CAD file should work with whatever program you are using. If you have questions please contact [email protected] and we will get back to you ASAP. ***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.*** PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.

Details

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Universal / platform-agnostic
Part Family	Front Bulkhead / Front-End Assemblies (tube chassis front clip)
Position	Front suspension
Build System	Stage 1 / Stage 2 / Stage 3 complexity tier

Frequently Asked Questions

Is this delivered as a DXF I can run on my plasma table, or just a CAD model?

It comes as a STEP file so it'll open in whatever program you're running, and since it's PTF (Plasma Table Friendly) it's designed with little to no bends, mostly flat plate. Just make sure you follow the WPO so you keep the strength when you cut and assemble it.

Will this work if I'm running a different steering box and ram than the ones listed?

This bulkhead is set up specifically around the Power Steering Solutions box and ID Designs ram, with the swinger/box locations built off that geometry. If you're running something different, shoot us an email at [email protected] and we'll see if another file fits your setup.

Does this come with the swinger setup or do I need to make that myself?

The swinger isn't included as a cut part, but the model gives you the box and swinger locations so you can design your own billet or sheetmetal swinger that matches the bulkhead perfectly. If you want help with a custom swinger we can connect you with a designer.

How do I get the Stage 2 Swinger Steering Centermount Bulkhead CAD files for PSS Steering Box and ID Designs Ram after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the Stage 2 Swinger Steering Centermount Bulkhead CAD files for PSS Steering Box and ID Designs Ram cost?

The Stage 2 Swinger Steering Centermount Bulkhead CAD files for PSS Steering Box and ID Designs Ram is $1,800.00.

Who designs the Stage 2 Swinger Steering Centermount Bulkhead CAD files for PSS Steering Box and ID Designs Ram?

This Stage 2 Swinger Steering Centermount Bulkhead CAD files for PSS Steering Box and ID Designs Ram is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Centermount Bulkhead CAD Files?

DIY Off Road has downloadable DXF cut files for Centermount Bulkhead CAD Files plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Centermount Bulkhead CAD Files category, or shoot us an email and we will point you to the right files for your build.

Do you have Race Truck Tube Chassis Sections / Components cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Race Truck Tube Chassis Sections / Components, including Centermount Bulkhead CAD Files, all designed by working fab shops. Browse the Race Truck Tube Chassis Sections / Components section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
