Stage 1 AWD Front Bulkhead - SPIDERTRAX NARROW CENTER
Designed to be plasma table friendly this AWD front end is setup for ease in fabrication and designed to complement MIG welded mild/4130 material components. Some do TIG weld these setups but they are MIG weld friendly. This front end can be used on a variety of applications form truck builds to AWD buggy builds (ultra 4 style). They graft onto your existing platform or you can start a new project with this front end.

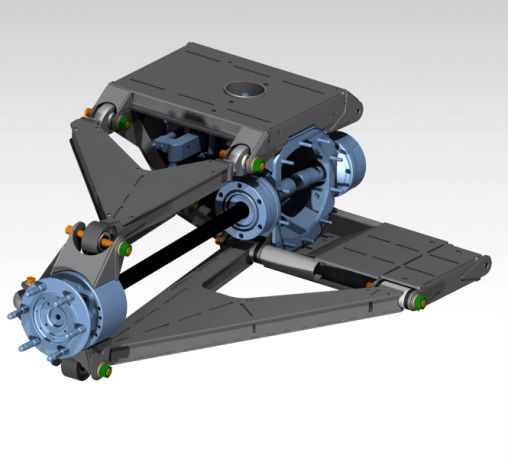

The cutfile pack includes the following: Lower arms, Upper arms, Uprights, Center section (mounting points for everything), and the rack adapter for the PSS rack.
Details
Differential – Designed for the Spidertrax Narrow center section that utilizes the Gearworks narrow third member.
Upright / Hubs – Designed for the Spidertrax Pro series Builder bells and hub assemblies.
Trackwidth/Wheel Mount Surface – Fullsize is setup for roughly 92.5” Trackwidth/81” WMS width on the wheel mount surface utilizing a 6” offset wheel (High offset). Midsize is setup for 88.5” Trackwidth/77” WMS width. Unique or custom Offsets are available upon request.
Steering – Designed for the Power Steering Solutions 2.75” rack or a HOWE 113 Rack.
Shock Package – Designed for up to 14” stroke shocks and will fit large diameter shocks, 3.0/4.5 packages. Wheel travel will depend on the shock package and tire size/ where you set the front end up with compression.
Rake – We have several options for setups with RAKE, from 0 degree to 6 degrees of rake. Unique or custom options are available.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Front Bulkhead / Front-End Assemblies (tube chassis front clip) |
| Position | Front suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
It's the whole setup — lower arms, upper arms, uprights, the center section with all the mounting points, plus the rack adapter for the PSS rack. You get the full bulkhead cut file pack, not just one piece.
These are designed MIG weld friendly to work with mild or 4130 components, so you're good running a MIG. Some guys do TIG these setups, but it's not required.
Yep, they're designed to be plasma table friendly and work on a variety of builds from trucks to AWD ultra4 style buggies. You can graft this front end onto your existing platform or start a fresh project with it.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Stage 1 AWD Front Bulkhead - SPIDERTRAX NARROW CENTER is $1,600.00.
This Stage 1 AWD Front Bulkhead - SPIDERTRAX NARROW CENTER is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Complete Bulkhead (Front End) Assemblies plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Complete Bulkhead (Front End) Assemblies category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including Complete Bulkhead (Front End) Assemblies, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
