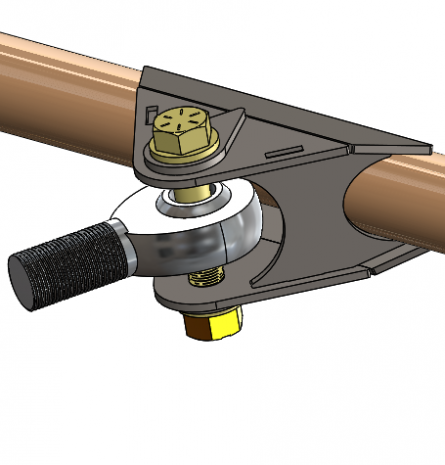

SINGLE VERTICAL BOLT CENTER LINK MOUNT - 2" TUBE - 3/4" BOLT - PTF
These single link mounts weld to round tubing and fit up to a 1.25" rod end. Cut completely out of 3/16" material, these are mig-friendly files with corner welds and allow for link mounts at large angles but limit the articulation compared to horizontal hole link mounts.
Designed by JEHC
***These products are Digital Assets. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Frequently Asked Questions
These weld to 2" round tube and fit up to a 1.25" rod end with a 3/4" bolt. If you're running a different tube size, shoot us an email and we'll see if another file works for your setup.
They're designed to be cut completely out of 3/16" material. Just run the DXF on your plasma, laser, or waterjet and you're good to go.
These are Plasma Table Friendly — all flat plate, no bends. They're mig-friendly with corner welds, just make sure you follow the WPO steps when you weld them in to keep the strength.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The SINGLE VERTICAL BOLT CENTER LINK MOUNT - 2" TUBE - 3/4" BOLT - PTF is $9.00.
This SINGLE VERTICAL BOLT CENTER LINK MOUNT - 2" TUBE - 3/4" BOLT - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 1.25" Rod End Vertical Single Link Mount - PTF plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 1.25" Rod End Vertical Single Link Mount - PTF category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Tube Chassis Link Mounts, including 1.25" Rod End Vertical Single Link Mount - PTF, all designed by working fab shops. Browse the Tube Chassis Link Mounts section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
