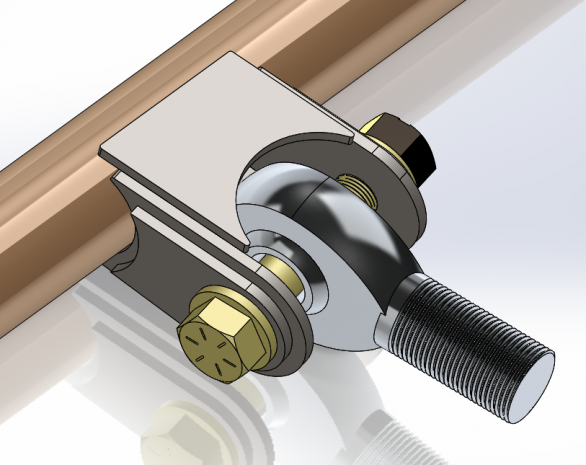

SINGLE 10* LINK PIVOT - 2" ROUND TUBING - 3/4" HOLE - PTF
***These products are Digital Assets. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Triangulated / Single / Vertical Link Pivot Mounts (chassis tube weld-on) |
| Position | Single-shear vs double-shear / vertical vs horizontal bolt orientation |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are designed to be cut out of 3/16" material. They're mig-friendly with corner welds, so they're easy to run on a plasma table and weld up.
All flat plate, no bends — that's what the plasma table friendly part means. Just cut them flat, then follow the WPO during assembly to keep the strength in the joint.
These weld to 2" round tubing and fit up to a 1.25" rod end with a 3/4" hole. If you need a different tube size or rod end, shoot us an email and we'll see if another file works for your build.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The SINGLE 10* LINK PIVOT - 2" ROUND TUBING - 3/4" HOLE - PTF is $9.00.
