I Beam "H" Frame Assembly (Stage 1)
Details

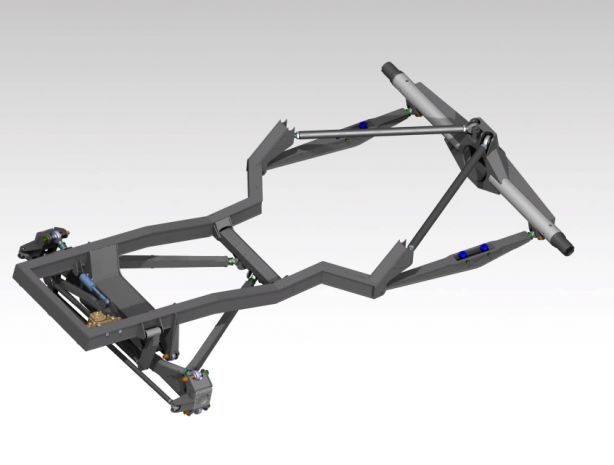

This H-Frame is the I-Beam version of a “Center mount Y-Frame” that can be used to build a new tube chassis platform.
The Stage 1 H-Frame is the perfect starting point for your next tube chassis project. From race trucks to luxury pre-runners the JEHC Platforms are designed to be fabrication friendly, taking the guess work out of complex suspension setup and geometry. All the Stage 1 components are designed to be plasma table friendly, meaning they can be cut on a plasma table, and they feature little to no bending/forming at all.
Stage 1 refers to the style of the components in this assembly, everything in this H-Frame Package can be cut from Mild Steel and MIG welded. Some clients cut them from 4130 Chromoly and TIG weld them, but Stage 1 Components are designed to complement MIG welding.
Available in Two different Trackwidths, 88+ and 91+
Available in various different wheelbase setups, designed to your specific wheelbase requirement.
Available with various different link lengths
Available with 3.5 or 4” rear end housings, other options available upon request.
Comes with the entire front I-Beam Bulkhead, Rear pivot boxes, Floor connection, Rear Link arms, and Housing that matches.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Tube-chassis / roll cage (generic round-tube build) |
|---|---|
| Part Family | Y-Frame / H-Frame / Roller Chassis / Center Assemblies |
| Position | Front suspension |
| Build System | I-beam / Twin I-Beam (TTB) |
Frequently Asked Questions
Yeah, all the Stage 1 components are plasma table friendly, so they're mostly or all flat plate with little to no bending. Just make sure you follow the WPO steps so you keep the strength when you assemble it.
Stage 1 is designed to be cut from mild steel and MIG welded, that's what it's built around. Some guys do cut them from 4130 chromoly and TIG weld instead, but the Stage 1 stuff is meant to complement MIG.
You get the full front I-Beam bulkhead, rear pivot boxes, floor connection, rear link arms, and a matching housing. It's available in 88+ or 91+ track width, built to your wheelbase, with different link lengths and a 3.5 or 4" rear end housing — email us if you need other options.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The I Beam "H" Frame Assembly (Stage 1) is $2,200.00.
This I Beam "H" Frame Assembly (Stage 1) is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Complete Y-Frame Chassis Assemblies plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Complete Y-Frame Chassis Assemblies category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including Complete Y-Frame Chassis Assemblies, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
