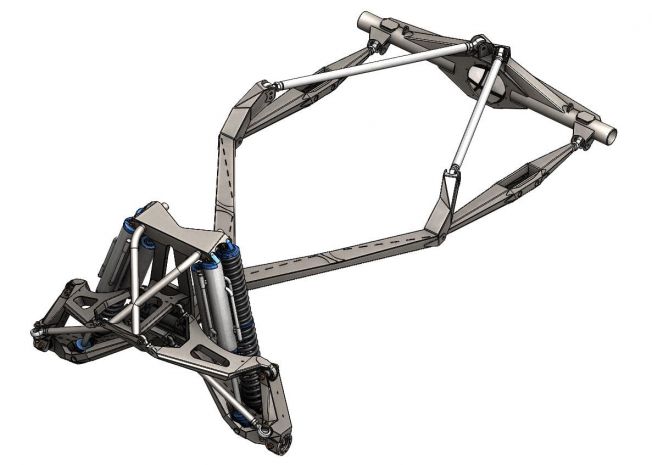

Stage 3 Y-Frame Assembly from BajaCustoms
***This product is a Digital Asset, you are purchasing the CAD files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
***Due to the complexity of these assemblies a representative from DIY OFFROAD will be reaching out to you personally upon purchase***
-Front and rear suspension with Y-frame.
-A tall and short height bulkheads are included.
-Both 3.5" or 4.0" diameter axle tube designs included.
-Spindle snout mounts for a doubled dana 44 bolt pattern.
-Steering rack mounting for a PPS 2.5 & 2.75 or Howe 2.5 & 3.0, 1.5:1 ratio, with 6" throw. Including tie rod brackets.
File types:
-SolidWorks models
-IGES, and E-drawing models
-DXF (laser cut) files
-2d, 3d PDF's copies
Extras:
-Models of all the pure race King shock sizes
-37" tire/wheel model
-Uniball and heim models
-Complete MS21250 bolt series models
-Hub and steering box mock-up models
-LS3 engine and TH400 transmission models
Front Suspension:
Tall bulkhead
Wheel Travel: 28" max
Track width at max extension: 90-92" depending on hub and wheel combinations
Caster: 8.5 degrees (level chassis with rake included)
Rake: 4 degrees
Bulkhead height: 35.5" not including rake angle, 36.5" when including rake angle
Shocks: 18” long. Max diameter combos= 3.0 C/O with 4.0 bypass or 2.5 C/O with 4.5 bypass, (tubes positioned to clear coil-over and upper arm) (King pure race shocks and lengths, but other brands may work).
Short bulkhead
Wheel Travel: 25.75"
Track width at max extension: 90-92" depending on hub and wheel combinations
Caster: 8.5 degrees (level chassis with rake included)
Rake: 4 degrees
Bulkhead height: 31" not including rake angle, 32" when including rake angle
Shocks: 16” long. Max diameter combos= 3.0 C/O with 4.0 bypass or 2.5 C/O with 4.5 bypass, (tubes positioned to clear coil-over and upper arm) (King pure race shocks and lengths, but other brands may work).
Rear Suspension:
Frame mounts
-3/4 mount holes, 2 position upper mounts
Lower links
-58" length pivot to pivot.
-1.5" shock mount spacing, extended mounts may be required.
Axle housing
-Both 3.5" or 4.0" diameter axle tube models included.
-Designed for Ford 9" or 10" third members.
-Housing and pinion centered.
-Add your specific fill, drain and vent holes as needed.
Y Frame:
-Designed specifically to combine our front and rear suspension setups together.
Wheelbase: 125"
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Y-Frame / H-Frame / Roller Chassis / Center Assemblies |
| Build System | Mild-steel MIG vs 4130 chromoly TIG |
Frequently Asked Questions
This assembly is designed to be cut from 4130 chromoly and TIG welded. The DXF files give you the plate geometry, so you can run them on a plasma, laser, or waterjet, but the design is built around chromoly so plan your material accordingly.
Some of the plates are made to be press bent, not just cut flat. You'll want access to a press brake along with your cutting setup, and since it's a complex assembly, a rep from DIY Off Road will reach out after purchase to walk you through the options.
Honestly, professional experience is a must on this one — it's a complete Y-frame assembly in chromoly that needs to be TIG welded. Because of the complexity, someone from DIY Off Road will reach out personally after you buy to make sure you've got what you need.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Stage 3 Y-Frame Assembly from BajaCustoms is $2,200.00.
This Stage 3 Y-Frame Assembly from BajaCustoms is brought to you by Baja Customs. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Complete Y-Frame Chassis Assemblies plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Complete Y-Frame Chassis Assemblies category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including Complete Y-Frame Chassis Assemblies, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
