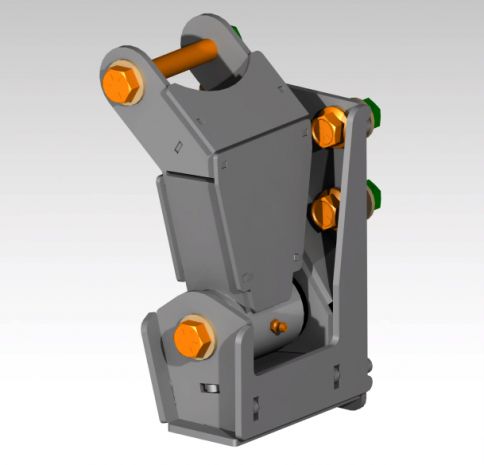

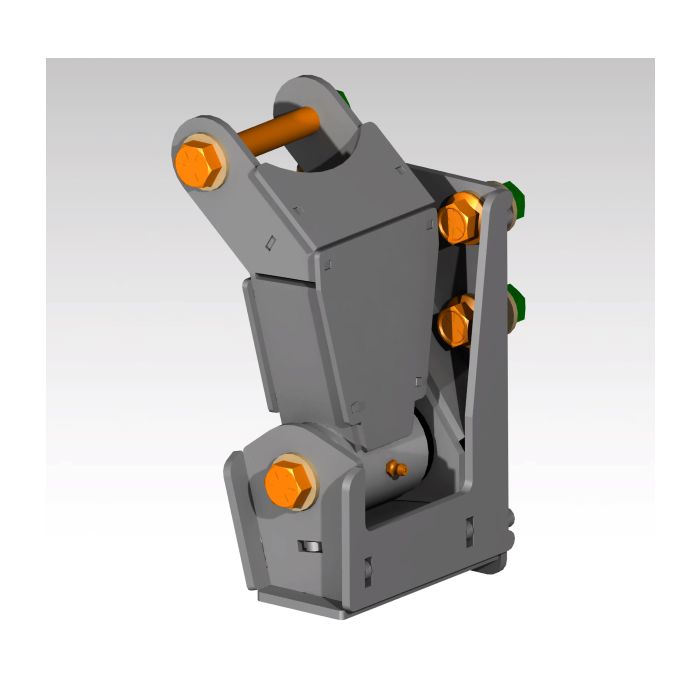

Ford Ranger Long Travel Rear Spring Hanger / Shackle combo cutfile pack - PTF

These cut files are designed for the Ford Ranger rear long travel leaf setup. If you're working on something else, shoot us an email and we'll see if one of the other files in the marketplace fits your build.

It's PTF (Plasma Table Friendly), so it's mostly or all flat plate with little to no bends — easy to run on a plasma table. Just follow the included WPO (weld/process order) steps to keep the strength right during assembly.

Both — it's a combo pack, so you get the cut files for the bolt-in hanger and the long travel shackle that drops the location 2" and moves it back 1" to free up shackle movement. You're buying the DXF/CAD files to have everything cut yourself.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The Ford Ranger Long Travel Rear Spring Hanger / Shackle combo cutfile pack - PTF is $27.00.

This Ford Ranger Long Travel Rear Spring Hanger / Shackle combo cutfile pack - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

DIY Off Road has downloadable DXF cut files for Leaf Spring Hangers plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Leaf Spring Hangers category, or shoot us an email and we will point you to the right files for your build.

Yeah — DIY Off Road carries downloadable DXF cut files across Leaf Spring Components, including Leaf Spring Hangers, all designed by working fab shops. Browse the Leaf Spring Components section or email us and we will help you track down the right files.

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
