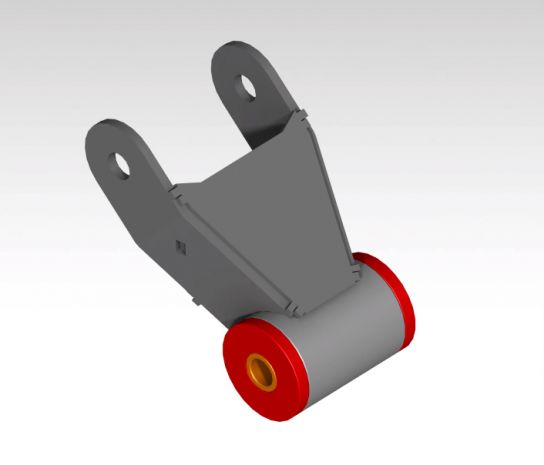

F100 Rear Leaf Spring Shackle
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Ford F100 |
|---|---|
| Part Family | Leaf Spring Shackles |
| Position | Rear suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are designed for the F100 platform running 2.5" springs with a 3" spread. If you're running something different, email us and we'll see if another file fits your setup.
They're plasma table friendly, meaning all flat plate with no bends needed. Just cut them out and follow the WPO during assembly to keep the strength right.
These are just the shackle cut files. The matching F100 Hangers are sold separately here on DIY and are designed to complement these shackles.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The F100 Rear Leaf Spring Shackle is $9.00.
