8" Tall Shock Tower for 2.5" Coilover - PTF

$32.00

In stock

SKU

601-JEH-003

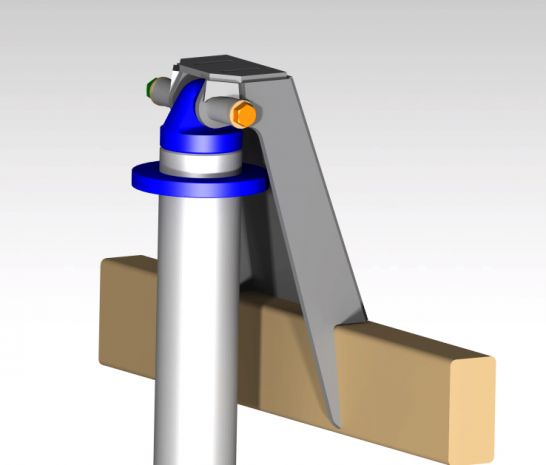

These Universal Shock towers are designed for 2.5” coil over shocks and to be mounted off the side of a frame. They are designed to mount to a straight frame rail but you can trim/sand them down to mount to just about any frame rail.

***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.

More Information

More Information
Seller	JEH Consulting INC

Specifications

Platform	Universal / platform-agnostic
Part Family	Coilover Shock Towers
Position	Straight (0 deg) vs angled (10 / 20 / 34 / 45 deg) mount geometry
Build System	Plasma Table Friendly (PTF) flat-plate, no-bend

Frequently Asked Questions

Do these towers need any bending or are they all flat plate I can just run on my plasma table?

These are PTF (Plasma Table Friendly), so it's all flat plate with no bends. You just run the DXF files on your plasma, laser, or waterjet, then follow the WPO weld procedure to keep the strength when you assemble them.

Will these mount to my frame if the rail isn't perfectly straight?

They're designed to mount off the side of a straight frame rail, but you can trim and sand them down to fit just about any frame rail. They're universal towers, so a little massaging gets them on most setups.

What size coilover do these towers work with?

These are built specifically for 2.5" coilover shocks and stand 8" tall. If you're running a different size shock, email us and we'll see if another file in the lineup works for your build.

How do I get the 8" Tall Shock Tower for 2.5" Coilover - PTF after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the 8" Tall Shock Tower for 2.5" Coilover - PTF cost?

The 8" Tall Shock Tower for 2.5" Coilover - PTF is $32.00.

Who designs the 8" Tall Shock Tower for 2.5" Coilover - PTF?

This 8" Tall Shock Tower for 2.5" Coilover - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Straight 2.5" Coilover Shock Towers?

DIY Off Road has downloadable DXF cut files for Straight 2.5" Coilover Shock Towers plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Straight 2.5" Coilover Shock Towers category, or shoot us an email and we will point you to the right files for your build.

Do you have Universal Shock Towers cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Universal Shock Towers, including Straight 2.5" Coilover Shock Towers, all designed by working fab shops. Browse the Universal Shock Towers section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
