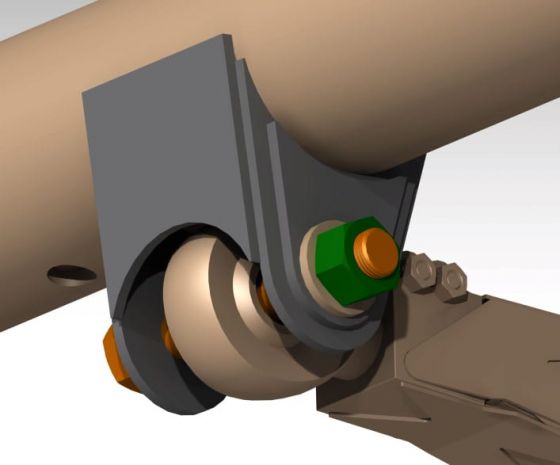

4" Tube Lower Link Mount (Under Housing)
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Aftermarket fab housings (Spidertrax / Trail-Gear / Camburg / Currie F9) |
|---|---|
| Part Family | Billet Axle Lower Link Mounts (weld-on housing) |
| Position | Under-housing vs front-of-housing (lower link mount) |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
Yep, these are designed for a 3/4" bolt with a 3" spread on the spacers, and they'll work fine with narrower spread spacers too. Just file them so they mount under your housing for the lower link arms.
These are plasma table friendly, meaning no bends — it's all flat plate so cutting and assembly is easy. Just make sure you follow the WPO steps so you keep the strength in the component.
This is a digital asset, so you're buying the DXF cutting files for the mount — no physical part ships. You take those files and have them cut on a CNC plasma, laser, or waterjet, then weld them into your build. Email us if you need a shop recommendation to get them cut.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 4" Tube Lower Link Mount (Under Housing) is $9.00.
This 4" Tube Lower Link Mount (Under Housing) is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 4" Desert Racing Fabricated Housings and Components from Tekk plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 4" Desert Racing Fabricated Housings and Components from Tekk category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Fabricated Housings from JEHC INC, including 4" Desert Racing Fabricated Housings and Components from Tekk, all designed by working fab shops. Browse the Fabricated Housings from JEHC INC section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
