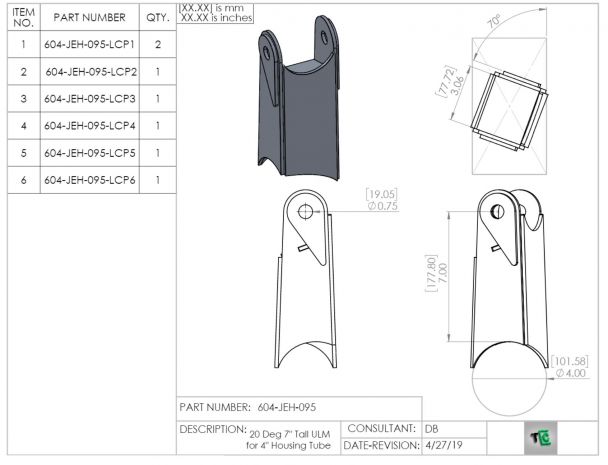

4.0" Tube 7" Height Upper Link Mount "Angled" (20 deg)
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
| Seller | JEH Consulting INC |
|---|
Frequently Asked Questions
This one's cut to wrap a 4.0" housing tube specifically, so the radius is matched to that diameter. If you're running a different tube size shoot us an email and we'll see if there's another file that fits your build.
These get pressed/bent after cutting — the description calls for cut and bent on a press, so you'll want a shop that can do the bend. Email us if you need a recommendation on a shop to cut and bend them for you.
This is the angled version of the upper link mount, built with a 20 degree angle off the housing tube to set your link pickup geometry. If you're not sure whether you want the angled or straight version for your setup, reach out and we can connect you with the designer.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 4.0" Tube 7" Height Upper Link Mount "Angled" (20 deg) is $9.00.
This 4.0" Tube 7" Height Upper Link Mount "Angled" (20 deg) is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 20 Deg. Upper Link Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 20 Deg. Upper Link Mounts category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Upper Link Mounts designed for Mounting off Housing Tube, including 20 Deg. Upper Link Mounts, all designed by working fab shops. Browse the Upper Link Mounts designed for Mounting off Housing Tube section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
