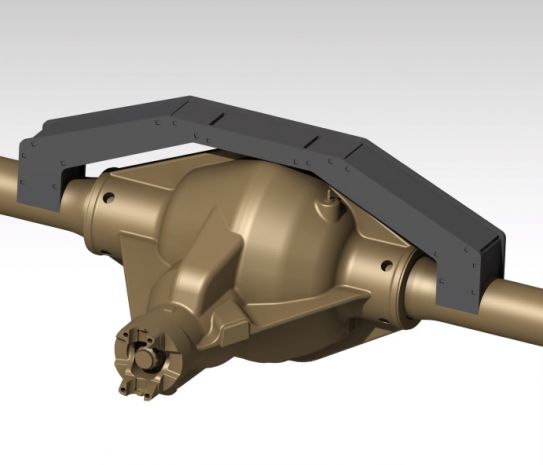

3.5" Tube Universal Rear End Truss - PTF
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Housing Truss / Truss Plate Kits |
| Position | Rear suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
It's designed to be universal and works with a variety of different rear end housings. If you want to make sure it'll work with yours, shoot us an email with your housing details and we'll help you sort it out.
You can cut these from either 1/4" or 3/16" material, whatever suits your build. The files are plasma table friendly so they'll run clean on a CNC plasma, laser, or waterjet.
It's designed Plasma Table Friendly with no bends — all flat plate, so cutting and assembly is easy. Just make sure you follow the WPO steps so the strength stays where it needs to be when you weld it together.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3.5" Tube Universal Rear End Truss - PTF is $12.00.
This 3.5" Tube Universal Rear End Truss - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Universal Truss / Upper Link Mount Setups plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Universal Truss / Upper Link Mount Setups category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Rear End Components, including Universal Truss / Upper Link Mount Setups, all designed by working fab shops. Browse the Rear End Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
