19-20 RZR TurboS +3 Front Replacement Arms (PTF) - from Allco Fab

$500.00

In stock

SKU

600-ALC-403-404

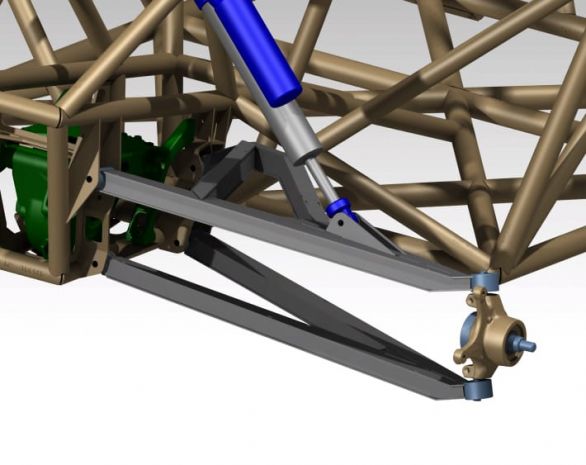

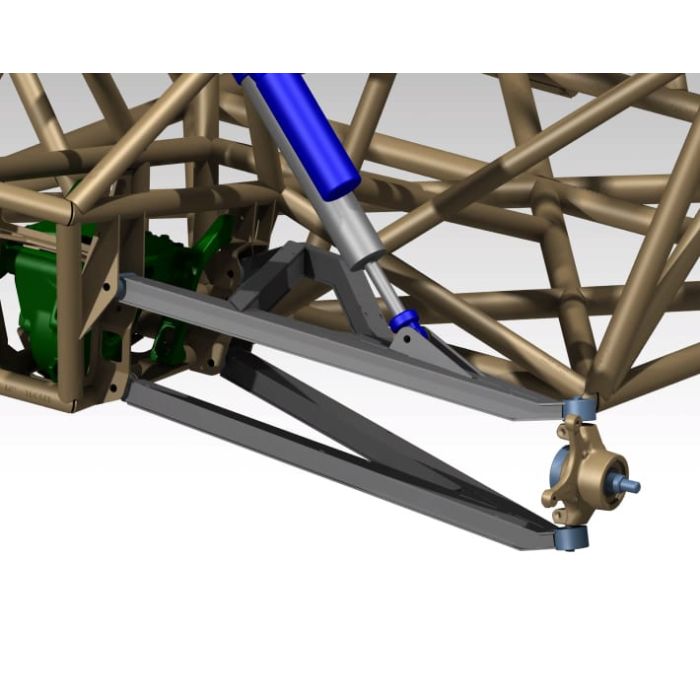

These replacement Front arms are designed for the 2019-2020 Turbo S platform, both the two and four seater platforms. They add 3" per side in trackwidth, giving the car about 78" overall.

The arm is designed to be a simple snap together construction and can be cut from either mild steel or 4130 while using a 7/8" bearing cup for the uprights and stock style delrin for the chassis mounts.

PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.

***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

Frequently Asked Questions

Will these arms fit both the two-seater and four-seater Turbo S?

Yep, these are designed for the 2019-2020 Turbo S platform in both the two and four seat versions. They add 3" per side, putting the car around 78" overall.

Can I cut these on my plasma table or do they need a bunch of bends?

These are PTF (Plasma Table Friendly), so they're mostly flat plate with little to no bends and snap together for easy assembly. Just make sure you follow the WPO steps to keep the strength right.

What material should I cut these from and what do I need for the cups and mounts?

You can run them in mild steel or 4130. They use a 7/8" bearing cup for the uprights and stock style delrin for the chassis mounts, so plan on having those on hand.

How do I get the 19-20 RZR TurboS +3 Front Replacement Arms (PTF) - from Allco Fab after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the 19-20 RZR TurboS +3 Front Replacement Arms (PTF) - from Allco Fab cost?

The 19-20 RZR TurboS +3 Front Replacement Arms (PTF) - from Allco Fab is $500.00.

Who designs the 19-20 RZR TurboS +3 Front Replacement Arms (PTF) - from Allco Fab?

This 19-20 RZR TurboS +3 Front Replacement Arms (PTF) - from Allco Fab is brought to you by All Co Metal Fab. Other off-road and race fabrication designers in the DIY Off Road marketplace include Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for UTV Suspension Kits?

DIY Off Road has downloadable DXF cut files for UTV Suspension Kits plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the UTV Suspension Kits category, or shoot us an email and we will point you to the right files for your build.

Do you have UTV cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across UTV, including UTV Suspension Kits, all designed by working fab shops. Browse the UTV section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
