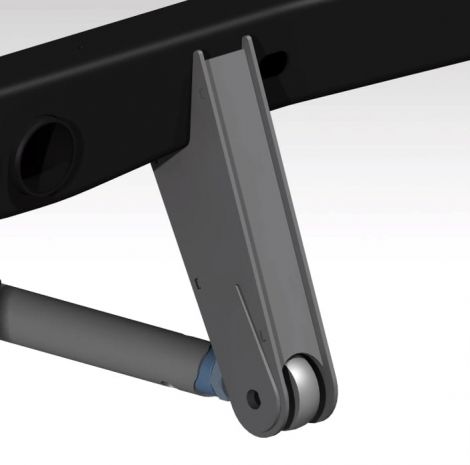

2" Offset Universal Panhard/Track Bar Chassis Mount - PTF
Setup for 1.25” or 7/8” rod ends with ¾” bolts and standard spacers.
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | JEH Consulting INC |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Panhard / Track Bar Mounts |
| Position | Chassis-side vs housing-side (panhard / link mounts) |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
It's set up for either 1.25" or 7/8" rod ends, both running 3/4" bolts with standard spacers. So you've got some flexibility depending on what you're building with.
These are PTF (Plasma Table Friendly), so it's little to no bends, mostly flat plate that clicks together. Just make sure you follow the WPO steps so you keep the strength when you weld it up.
Yep, they're designed to be plasma table friendly, so you can run the DXF right on your CNC plasma. They'll cut fine on a laser or waterjet too if that's what you've got.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 2" Offset Universal Panhard/Track Bar Chassis Mount - PTF is $20.00.
This 2" Offset Universal Panhard/Track Bar Chassis Mount - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Universal Trac/Panhard Bar Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Universal Trac/Panhard Bar Mounts category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Link Suspension Components, including Universal Trac/Panhard Bar Mounts, all designed by working fab shops. Browse the Link Suspension Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
