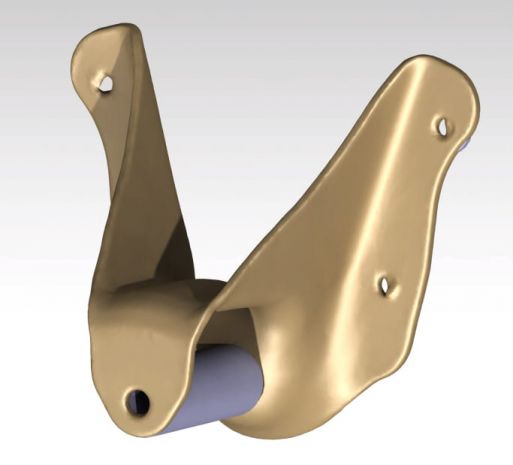

1990 Bronco FRONT Spring Hanger Scan CAD File

$22.00

In stock

SKU

999-JEH-030

The scans are delivered in ZIP folders in STEP file format. IF you need another format please email [email protected] with your request and order number, we can get you any file type you request.

***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

More Information

More Information
Seller	Jason Heard

Specifications

Platform	Ford Bronco
Part Family	3D Scan / CAD Reference Files
Position	Front suspension

Frequently Asked Questions

What file format do these spring hanger scans come in?

They come as STEP files delivered in a ZIP folder. If you need a different format like DXF or something else, just email [email protected] with your order number and we'll get you whatever file type you need.

Is this scan only for the front, or does it cover the rear hangers too?

This one is just the front spring hanger for the 90 Bronco. We've got other 90 Bronco chassis and suspension files in the same category, so check those out for the rear or email us and we'll point you to the right file.

Can I run this on my plasma table to cut the hanger plates?

This is a 3D scan delivered as a CAD (STEP) solid, so it's set up for you to work from for cutting and bending the plates on a CNC plasma, laser, or waterjet. If you need it kicked out as flat DXF cut files, email us with your order number and we'll sort that out for you.

How do I get the 1990 Bronco FRONT Spring Hanger Scan CAD File after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the 1990 Bronco FRONT Spring Hanger Scan CAD File cost?

The 1990 Bronco FRONT Spring Hanger Scan CAD File is $22.00.

Who designs the 1990 Bronco FRONT Spring Hanger Scan CAD File?

This 1990 Bronco FRONT Spring Hanger Scan CAD File is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for 90 Bronco Chassis and Suspension?

DIY Off Road has downloadable DXF cut files for 90 Bronco Chassis and Suspension plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 90 Bronco Chassis and Suspension category, or shoot us an email and we will point you to the right files for your build.

Do you have 3D Scan CAD Files cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across 3D Scan CAD Files, including 90 Bronco Chassis and Suspension, all designed by working fab shops. Browse the 3D Scan CAD Files section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
