1980-96 Bronco Steering Box

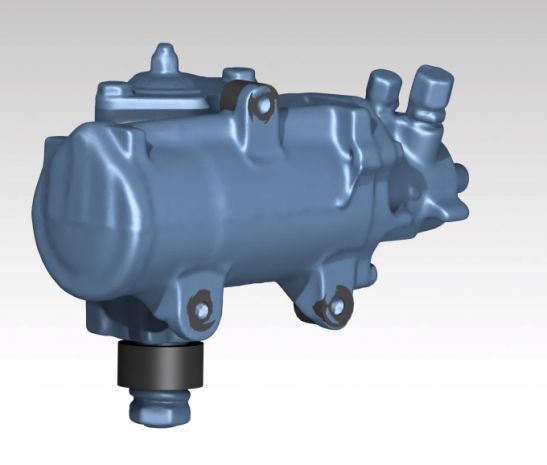

It's a Scan Solid file taken off the real steering box, so the geometry and mount points are accurate. It's meant to drop into your CAD so you can design suspension and steering around it.

It comes as a STEP file, which is a universal format that should work in most CAD programs. If you need it in a different format, just email us at [email protected] after purchase and we'll get you sorted.

This one is a solid CAD scan meant for use as reference geometry while you design your suspension and steering. It's not a flat DXF cut file, so you'd use it to mock up mounts and clearances rather than send it straight to the plasma table.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The 1980-96 Bronco Steering Box is $30.00.
