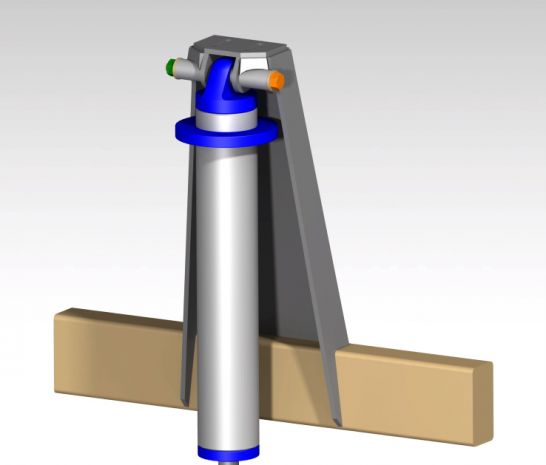

16" Tall Shock Tower for 2.5" Coilover - PTF
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Coilover Shock Towers |
| Position | Straight (0 deg) vs angled (10 / 20 / 34 / 45 deg) mount geometry |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are PTF (Plasma Table Friendly), so they're all flat plate with no bends to deal with. Just follow the WPO (welding process order) on assembly to keep the strength right when you weld it up.
It's designed to mount off the side of a straight frame rail, but you can trim and sand it down to fit just about any frame rail. Mounts for 2.5" coilovers.
You're getting the DXF cut files, not a physical part. Run them on your CNC plasma, laser, or waterjet to get the plates cut, then weld it together per the WPO.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 16" Tall Shock Tower for 2.5" Coilover - PTF is $32.00.
