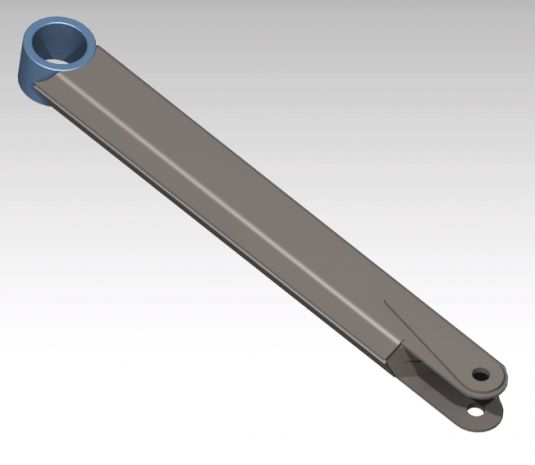

16" T4 Sway Bar Arm

What thickness 4130 should I cut these sway bar arms from?

These are designed to be cut from 4130 and TIG welded together for a light, strong race arm. The files don't specify a single plate thickness here, so shoot us an email and we'll get you the recommended material spec before you run them.

Do these arms need to be bent or are they flat plates that just weld up?

These are designed to be cut and then press bent, so you'll need a press to form the plates before you TIG them together. If you don't have a press, email us and we can recommend a shop to cut and bend them for you.

What do I actually get when I buy this, a part or just the files?

This is a digital asset, so you're getting the DXF cutting files only, not a physical arm. You take those DXFs and have the plates cut on a CNC plasma, laser, or waterjet, then bend and TIG weld them into your sway bar setup.

How do I get the 16" T4 Sway Bar Arm after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the 16" T4 Sway Bar Arm cost?

The 16" T4 Sway Bar Arm is $72.00.

Who designs the 16" T4 Sway Bar Arm?

This 16" T4 Sway Bar Arm is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for T4 Trophy Truck Style RACE Sway Bar Arms?

DIY Off Road has downloadable DXF cut files for T4 Trophy Truck Style RACE Sway Bar Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the T4 Trophy Truck Style RACE Sway Bar Arms category, or shoot us an email and we will point you to the right files for your build.

Do you have Sway Bar Arms cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Sway Bar Arms, including T4 Trophy Truck Style RACE Sway Bar Arms, all designed by working fab shops. Browse the Sway Bar Arms section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
