80mm Tube (Jeep JL Rubi/Gladiator/GM 10 Bolt (GMT800-900)) Universal Truss - PTF

$12.00

In stock

SKU

604-JEH-037

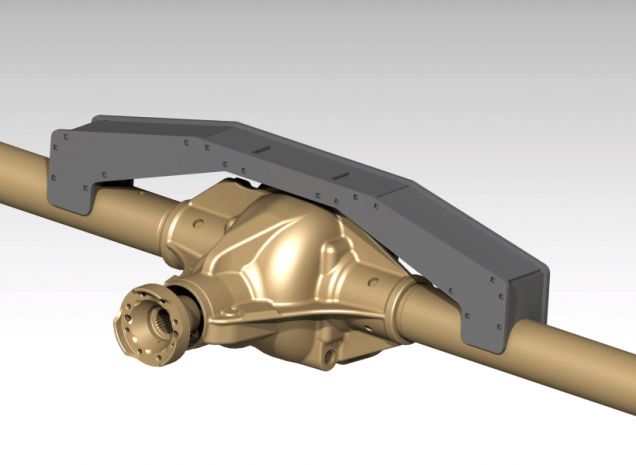

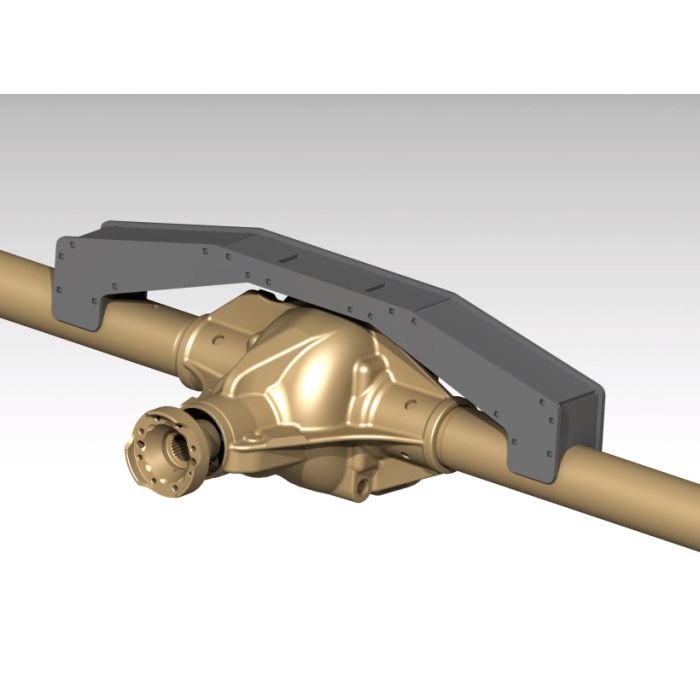

This Universal Rear End Truss is designed for 80mm housing tubes and a lower profile height to complement axles like the Jeep JL Rubicon series Rear End housings. It will work with similar housings but check the dimension sheet. This truss mimics the universal trusses so that all of the upper link mount options will work with this truss, some may need slight sanding, but they will work.

***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.

More Information

More Information
Seller	JEH Consulting INC

Specifications

Platform	Universal / platform-agnostic
Part Family	Housing Truss / Truss Plate Kits
Position	Rear suspension
Build System	Plasma Table Friendly (PTF) flat-plate, no-bend
