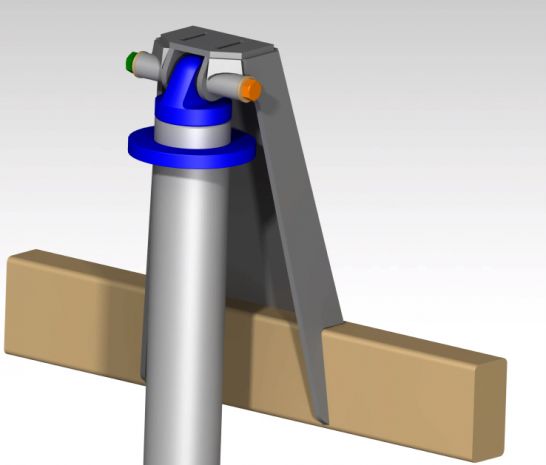

10" Tall Shock Tower for 2.5" Coilover - PTF
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Coilover Shock Towers |
| Position | Straight (0 deg) vs angled (10 / 20 / 34 / 45 deg) mount geometry |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are PTF (Plasma Table Friendly), so they're all flat plate with no bends. Just cut them on your plasma, laser, or waterjet and follow the WPO steps to keep the strength when you assemble and weld them up.
They're designed to mount to a straight frame rail off the side of the frame, but you can trim and sand them down to fit just about any frame rail. A little massaging and they'll work for most builds.
You're getting the DXF cutting files, not a physical part. Take those to a CNC plasma, laser, or waterjet to have the plates cut, then weld them into your build following the WPO. If you need a shop to cut them, email us and we can point you to one.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 10" Tall Shock Tower for 2.5" Coilover - PTF is $32.00.
This 10" Tall Shock Tower for 2.5" Coilover - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Straight 2.5" Coilover Shock Towers plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Straight 2.5" Coilover Shock Towers category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Universal Shock Towers, including Straight 2.5" Coilover Shock Towers, all designed by working fab shops. Browse the Universal Shock Towers section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
Reviews
No reviews yet.
