7 DEG Universal Radius Arm Mount for Beams

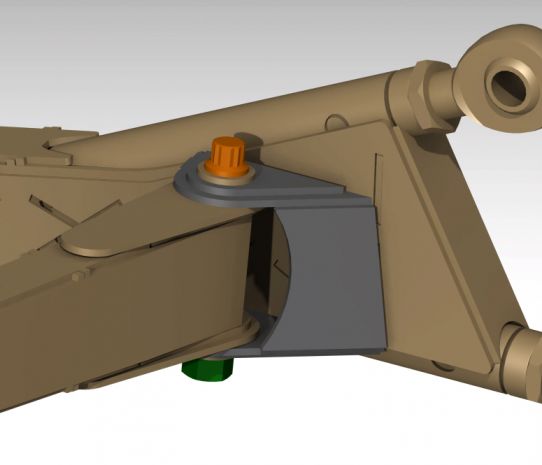

These radius arm brackets are designed for the JEH Consulting Universal Beams and Radius Arms and set to 7 degrees of caster.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Radius-Arm / Beam Chassis Mounts (caster + offset set) |
| Position | Front suspension |
| Build System | Radius-arm front |
Frequently Asked Questions
Yep, these brackets are designed specifically for the JEH Consulting Universal Beams and Radius Arms. They come set at 7 degrees of caster right out of the gate.
These are plasma table friendly — all flat plate, no bends, so you just cut and assemble. Just make sure you follow the WPO steps so you keep the strength in the component.
This is a digital asset, so you're getting the DXF cut files only — nothing physical ships. You take those files and have the plates cut on a CNC plasma, laser, or waterjet, and if you need a shop to cut them email us for a recommendation.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 7 DEG Universal Radius Arm Mount for Beams is $12.00.
This 7 DEG Universal Radius Arm Mount for Beams is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 1.5" Uni-Ball Lower Universal Beams and Uprights plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 1.5" Uni-Ball Lower Universal Beams and Uprights category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Universal Beam Components, including 1.5" Uni-Ball Lower Universal Beams and Uprights, all designed by working fab shops. Browse the Universal Beam Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
