Universal Beam Upright D44/Race Hub Pattern for 35-37" Tires - PTF
These uprights are designed to work with the 1.25" Rod End Universal Beams from JEHC (008, 011), both the Heim and Uni-ball Beam Setups. They are designed to use a standard 12 bolt Snout Blocks that are machiend from 1" thick 4130 Billet and Sold here on DIY under the Fabrication/Hard Parts Section.
Optimized for 35-37” tires these uprights are perfect for most beam truck applications, is you are going to use the stock D44 hub setup then we suggest not running larger than a 35” tire with these uprights.

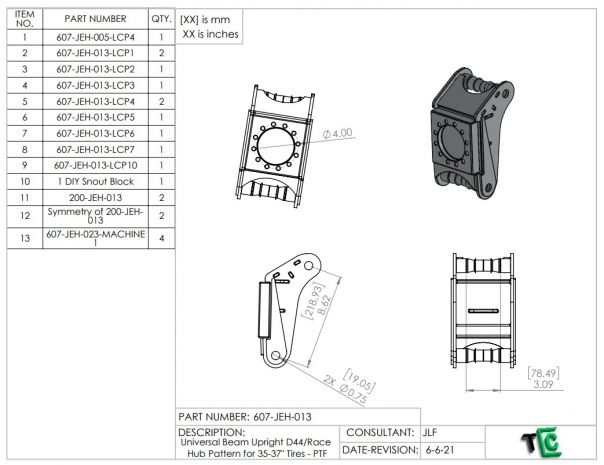

***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Spindles / Uprights (beam, buggy, GM hub) |
| Position | Front suspension |
| Build System | I-beam / Twin I-Beam (TTB) |
Frequently Asked Questions
Yep, these are designed to work with the JEHC 1.25" Rod End Universal Beams (008, 011), and they'll run with both the Heim and Uni-ball beam setups. So you're covered either way.
Not with the stock D44 hubs — if you're sticking with the stock D44 hub setup we'd suggest staying at 35" max. To run up toward 37" you'll want to go with the race hub pattern instead.
These are plasma table friendly — all flat plate, no bends, so you can cut them and go. Just make sure you follow the WPO during assembly so you keep the strength in the part. Heads up though, you'll also need the 12 bolt snout blocks (1" 4130 billet) which are sold separately under the Fabrication/Hard Parts section.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Universal Beam Upright D44/Race Hub Pattern for 35-37" Tires - PTF is $36.00.
This Universal Beam Upright D44/Race Hub Pattern for 35-37" Tires - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 1.25" Rod End Universal Beam Setups plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 1.25" Rod End Universal Beam Setups category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Universal Beam Components, including 1.25" Rod End Universal Beam Setups, all designed by working fab shops. Browse the Universal Beam Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
