Stage 2 Centermount Bulkhead CAD File for PSS Rack

Stage 2 Centermount Bulkhead CAD File for PSS Rack

Be the first to review this product

$1,200.00

In stock

SKU

600-JEH-009-CAD

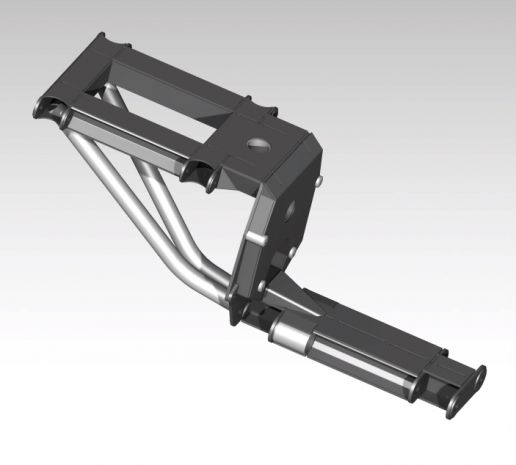

This bulkhead CAD file is perfect for those who want to design their own Suspension setup based off the geometry of a professionally setup centermount. It features a steering rack mount for a Power Steering Solutions 2.5/75 Rack. In the model you will also find the locations for the steering rack adapter so that you can either design a billet rack adapter or a sheetmetal one that perfectly matched the bulkhead. Delivered as a STEP file this universal CAD file should work with whatever program you are using. If you have questions please contact [email protected] and we will get back to you ASAP. ***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.*** PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.

Details

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Universal / platform-agnostic
Part Family	Front Bulkhead / Front-End Assemblies (tube chassis front clip)
Position	Front suspension
Build System	Stage 1 / Stage 2 / Stage 3 complexity tier
