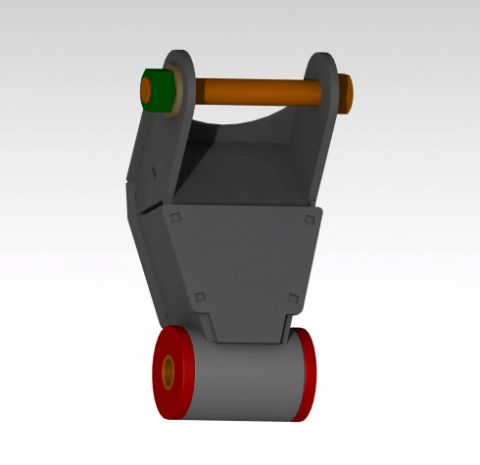

2.5" Spring DIY Shackle 6" Length Plasma Table Friendly
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Details
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Leaf Spring Shackles |
| Position | Rear suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are designed specifically for 2.5" springs with a 3" spread on a 9/16" bolt. If you're running a different width pack, shoot us an email and we'll see if another file fits your setup.
They're set up for standard Autofab bushing packs, which you can grab over on Kartek.com. You'll need to order those on your own since this purchase is just the cut files.
You'll cut the plates on your CNC plasma, laser, or waterjet, then press bend them to shape. They're drawn to be plasma table friendly, so cutting is straightforward, but plan on a press for the bends.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 2.5" Spring DIY Shackle 6" Length Plasma Table Friendly is $9.00.
This 2.5" Spring DIY Shackle 6" Length Plasma Table Friendly is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for DIY Plasma Table Friendly Shackles plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the DIY Plasma Table Friendly Shackles category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Leaf Spring Components, including DIY Plasma Table Friendly Shackles, all designed by working fab shops. Browse the Leaf Spring Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
