3.5" Tube "Front Mount" (20 deg)
Details
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Aftermarket fab housings (Spidertrax / Trail-Gear / Camburg / Currie F9) |
|---|---|
| Part Family | Upper / Lower Link Mounts (housing-mounted) |
| Position | Under-housing vs front-of-housing (lower link mount) |
| Build System | Link suspension (general rod-end / uniball link) |
Frequently Asked Questions
These are drawn specifically for 3.5" tube, so they're meant to wrap that diameter right out of the box. If you're running a different tube size, shoot us an email and we'll see if there's a file that fits your build.
These get cut and then press bent before you weld them in — that's why it's drawn as a bend part, not a flat plate. Any decent shop with a press brake can knock the bends out for you, and we can recommend one if you need it.

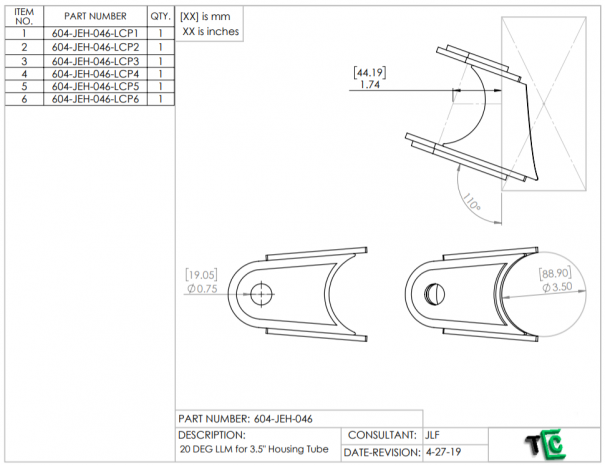

Yep, the 20 deg is the built-in angle for this front mount so your link sits where it should. Just download the DXF and have it cut on a plasma, laser, or waterjet, then bend and weld it onto your housing.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3.5" Tube "Front Mount" (20 deg) is $9.00.
This 3.5" Tube "Front Mount" (20 deg) is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Trail Gear 3.5" Housing Link/Truss Setups plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Trail Gear 3.5" Housing Link/Truss Setups category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Aftermarket Fabricated Housing Link Mounts and Truss Setups, including Trail Gear 3.5" Housing Link/Truss Setups, all designed by working fab shops. Browse the Aftermarket Fabricated Housing Link Mounts and Truss Setups section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
