Rear Truss for Trail-Gear 3.5 Housing - Equal Length Axles - PTF

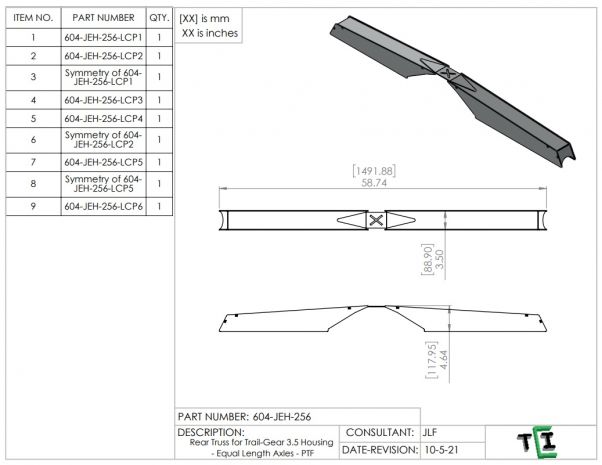

This housing truss is setup for Equal Length Axles, the truss is centered on the equal length axles. With a simple no-bend style this truss is plasma table friendly and can easily be cut/fabricated.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Details
This housing truss is setup for Equal Length Axles, the truss is centered on the equal length axles. With a simple no-bend style this truss is plasma table friendly and can easily be cut/fabricated.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Aftermarket fab housings (Spidertrax / Trail-Gear / Camburg / Currie F9) |
|---|---|
| Part Family | Housing Truss / Truss Plate Kits |
| Position | Equal-length / centered / pinion-centered (truss + link-mount positioning) |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
This one is centered specifically for the equal length axle setup, so it's not made for an offset housing. If you're running a standard offset 3.5 housing, shoot us an email and we'll see if there's another file that fits your build.
It's a no-bend style truss, so it's mostly or all flat plate and easy to run on your plasma table. Just follow the included WPO steps during assembly to keep the strength where it needs to be.
You're getting the digital cutting files for this truss so you can have the plates cut on a CNC plasma, laser, or waterjet. It's available as DXF or solid CAD files, then you cut and weld it onto your housing yourself.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Rear Truss for Trail-Gear 3.5 Housing - Equal Length Axles - PTF is $12.00.
This Rear Truss for Trail-Gear 3.5 Housing - Equal Length Axles - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Trail Gear 3.5" Housing Link/Truss Setups plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Trail Gear 3.5" Housing Link/Truss Setups category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Aftermarket Fabricated Housing Link Mounts and Truss Setups, including Trail Gear 3.5" Housing Link/Truss Setups, all designed by working fab shops. Browse the Aftermarket Fabricated Housing Link Mounts and Truss Setups section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
