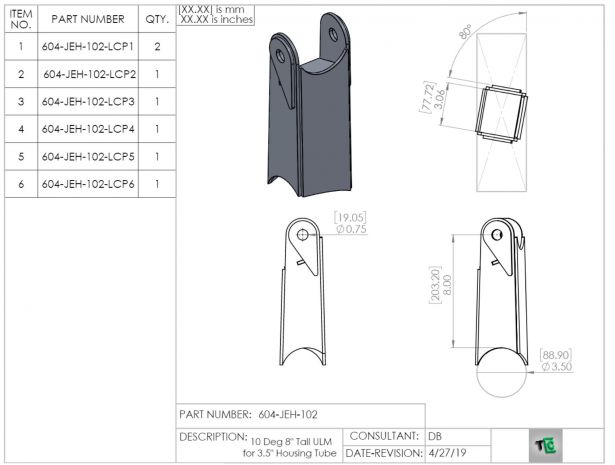

3.5" Tube 8" Height Upper Link Mount "Angled" (10 deg)
Details
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Aftermarket fab housings (Spidertrax / Trail-Gear / Camburg / Currie F9) |
|---|---|
| Part Family | Upper / Lower Link Mounts (housing-mounted) |
| Position | Upper (upper control arm / upper link mount) |
| Build System | Link suspension (general rod-end / uniball link) |
Frequently Asked Questions
These are cut to fit a 3.5" housing tube, that's what the radius on the saddle is built around. If you're running a different tube size shoot us an email and we'll see if there's a file that matches your setup.
They'll need a bend, so you'll have to press them after cutting. The description notes these get cut and bent (press) from a plasma, laser, or waterjet machine before you weld them onto your housing.
It's an angled mount built with a 10 degree offset so you can dial in your upper link geometry on a 3.5" housing setup. If you're not sure it'll work for your link angles, email us and we can point you to the right file.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3.5" Tube 8" Height Upper Link Mount "Angled" (10 deg) is $9.00.
This 3.5" Tube 8" Height Upper Link Mount "Angled" (10 deg) is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Trail Gear 3.5" Housing Link/Truss Setups plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Trail Gear 3.5" Housing Link/Truss Setups category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Aftermarket Fabricated Housing Link Mounts and Truss Setups, including Trail Gear 3.5" Housing Link/Truss Setups, all designed by working fab shops. Browse the Aftermarket Fabricated Housing Link Mounts and Truss Setups section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
