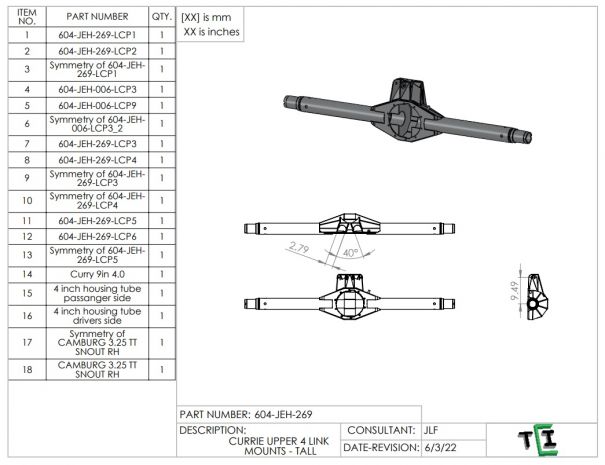

TALL Upper 4 Link Mounts for the Currie F9 Housing
These Link Mounts are designed for the Currie F9 Housing center section and are "TALL" in that they are further off the housing center section.
Designed for 1.25" rod ends with 2.76" wide spacers on 5/8" bolts.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Details
These Link Mounts are designed for the Currie F9 Housing center section and are "TALL" in that they are further off the housing center section.
Designed for 1.25" rod ends with 2.76" wide spacers on 5/8" bolts.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Aftermarket fab housings (Spidertrax / Trail-Gear / Camburg / Currie F9) |
|---|---|
| Part Family | Upper / Lower Link Mounts (housing-mounted) |
| Position | Upper (upper control arm / upper link mount) |
| Build System | 4-link rear |
Frequently Asked Questions
They're designed for 1.25" rod ends with 2.76" wide spacers on 5/8" bolts, so if that's your hardware you're good to go. Running something different would mean modifying the files, so shoot us an email and we can point you to the right setup.
These are weld-on mounts made to sit on the Currie F9 housing center section. The DXF/CAD files give you the plates to cut and bend, then you weld them on for your build.
Yep, you're buying the DXF cut files (CAD/solid files too) so you can have them cut on a plasma, laser, or waterjet. A few of the plates do need to be press bent after cutting, so plan on a press in your process — email us if you need a shop recommendation for the cut and bend.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The TALL Upper 4 Link Mounts for the Currie F9 Housing is $14.00.
This TALL Upper 4 Link Mounts for the Currie F9 Housing is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Currie F9 plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Currie F9 category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Aftermarket Fabricated Housing Link Mounts and Truss Setups, including Currie F9, all designed by working fab shops. Browse the Aftermarket Fabricated Housing Link Mounts and Truss Setups section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
