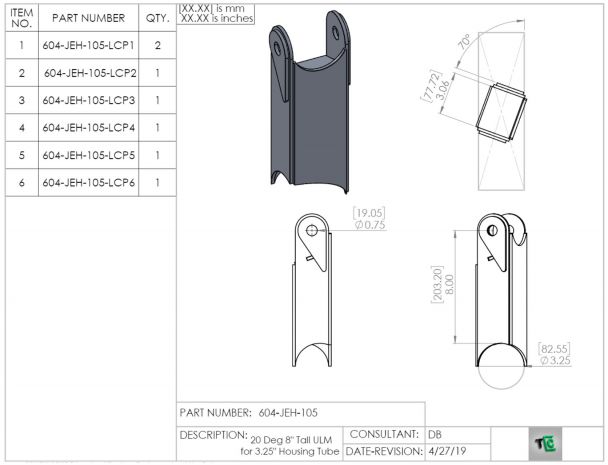

3.25" Tube 8" Height Upper Link Mount "Angled" (20 deg)
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
| Seller | JEH Consulting INC |
|---|
Frequently Asked Questions
These files are drawn for a 3.25" housing tube, so the radius cut on the plates is made to wrap that diameter. If your axle tube is a different size, email us and we'll see if another file in the lineup matches your build.
These are designed to be cut and then press bent, so you'll want a press brake to put the bend in before you weld them onto your housing. The 'angled' design sets your upper link at 20 degrees once it's welded up.
You're getting the DXF cut files so you can have the plates cut on a plasma, laser, or waterjet, then bent and welded into your build. The files don't lock you to a thickness, so cut from whatever plate suits your application — if you're unsure, email us and we can point you to a shop to cut and bend them.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3.25" Tube 8" Height Upper Link Mount "Angled" (20 deg) is $9.00.
