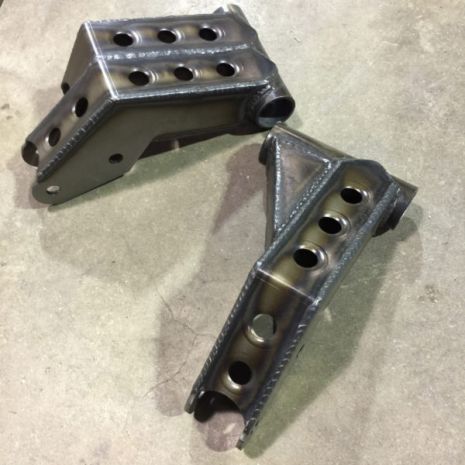

Universal Equal Length Steering Swingers - Plasma Table Ready
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Brian Baker |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Steering Swingers / Pitman Components / Steering Column |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are all flat plate, no bends — that's the whole point of the plasma table friendly design. Just follow the WPO (weld procedure) steps so you keep the strength when you assemble them.
They're designed for 7/8" rod ends with 2" wide high-misalignment spacers on 9/16" bolts. Make sure your hardware matches that before you have them cut.
These are universal and made for equal length beams across various chassis setups and applications, so they're not locked to one beam type. If you're not sure they'll suit your specific build, shoot us an email and we can help you sort it out.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Universal Equal Length Steering Swingers - Plasma Table Ready is $72.00.
This Universal Equal Length Steering Swingers - Plasma Table Ready is brought to you by Baker Motorsports. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for D44 / Universal Beam Components from Baker Fabrication plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the D44 / Universal Beam Components from Baker Fabrication category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across I-Beam Suspension, including D44 / Universal Beam Components from Baker Fabrication, all designed by working fab shops. Browse the I-Beam Suspension section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
