2100mmx750mm METRIC 50mmx50mm Pattern
Details

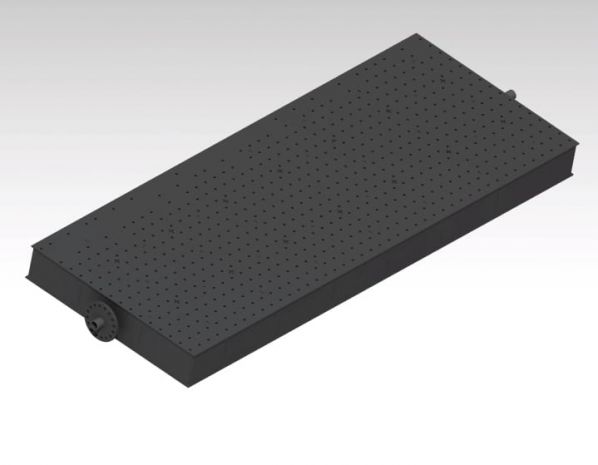

Honeycomb style Component Fixture/Welding Table that utilized 10mm through bolts that are on a 50mm by 50mm pattern.Â
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Fixture / Welding Tables (honeycomb + race chassis tables) |
| Build System | Imperial 2x2 vs Metric 50x50 fixturing |
Frequently Asked Questions
These are downloadable DXF cut files, not a physical table. After payment you get the files to run on your plasma, laser, or waterjet and weld up the fixture table yourself.
It's a honeycomb-style fixture/welding table set up for 10mm through bolts on a 50mm x 50mm pattern. The overall size on this one is 2100mm x 750mm.
This file is built for the 2100mm x 750mm size. If you need a different footprint, shoot us an email and we can connect you with the designer for custom work.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 2100mmx750mm METRIC 50mmx50mm Pattern is $82.00.
The 2100mmx750mm METRIC 50mmx50mm Pattern is offered through the DIY Off Road marketplace, featuring cut-file designs from fabricators including All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Metric JEHC Tables plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Metric JEHC Tables category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across JEHC Fixture Tables, including Metric JEHC Tables, all designed by working fab shops. Browse the JEHC Fixture Tables section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
