Pivot Plate Press 1.5" Bearing Cup 3.375" diameter

Be the first to review this product

$12.00

In stock

SKU

104-JEH-003

Details

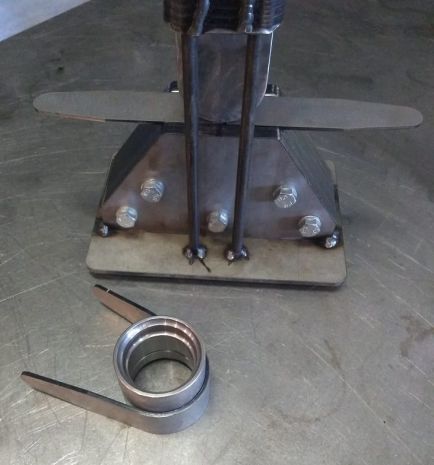

You can make professional grade bearing/bushing wrap plates with these custom designed press-die setups. These pivot plate presses are designed to be used in any standard hydraulic press, from the 20ton Harbor Fright press on up. Each pivot press is designed for a specific diameter of the component you are making wrap plates for. Each press is designed and tested to properly form up to 1/8" Chromoly (4130 material), thinner material is not a problem.

More Information

More Information
Seller	Jason Heard

Specifications

Platform	Universal / platform-agnostic
Part Family	Bearing / Bushing Cup Press Dies

Frequently Asked Questions

Are these DXF files or does an actual press tool ship to me?

These are downloadable DXF cut files for the press-die setup, not a physical part. You run them on your plasma, laser, or waterjet and weld/assemble the press dies yourself.

What size bearing or bushing is this press die actually set up for?

This one's designed specifically for a 1.5" bearing cup with a 3.375" diameter component. Each pivot press is built for one specific diameter, so if you're wrapping a different size, email us and we'll point you to the right file.

How thick of material can I form with these and does it work in a cheap shop press?

They're designed and tested to properly form up to 1/8" Chromoly (4130), and thinner material is no problem at all. They'll work in any standard hydraulic press, from a 20-ton Harbor Freight unit on up.

How do I get the Pivot Plate Press 1.5" Bearing Cup 3.375" diameter after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the Pivot Plate Press 1.5" Bearing Cup 3.375" diameter cost?

The Pivot Plate Press 1.5" Bearing Cup 3.375" diameter is $12.00.
