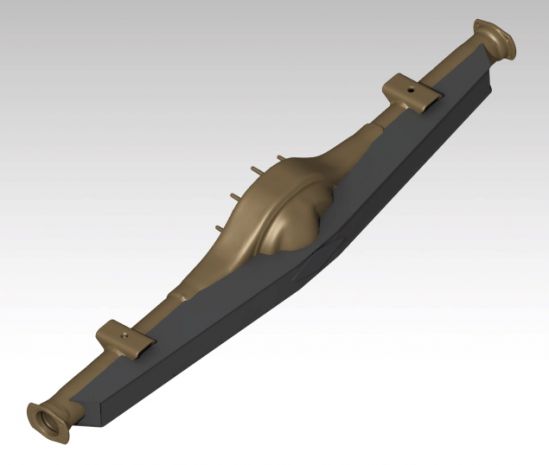

Stock 9" DIY Plasma Table Friendly Rear Truss
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Ford 9" rear end |
|---|---|
| Part Family | Housing Truss / Truss Plate Kits |
| Position | Rear suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
It's designed for a stock Ford 9" housing. If you're running something other than a stock 9", shoot us an email and we'll see if there's a file that works for your setup.
No bends on this one — it's designed plasma-table-friendly so you can cut the plates and weld them up without having to press anything. Just cut, fit, and weld onto your housing.
You're buying the DXF cutting files only — this is a digital download, no physical part ships. Once you've got the DXF you can run it on a CNC plasma, laser, or waterjet to have the plates cut.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Stock 9" DIY Plasma Table Friendly Rear Truss is $12.00.
The Stock 9" DIY Plasma Table Friendly Rear Truss is offered through the DIY Off Road marketplace, featuring cut-file designs from fabricators including All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Stock Ford 9" Housing Components plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Stock Ford 9" Housing Components category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Rear End Components, including Stock Ford 9" Housing Components, all designed by working fab shops. Browse the Rear End Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
