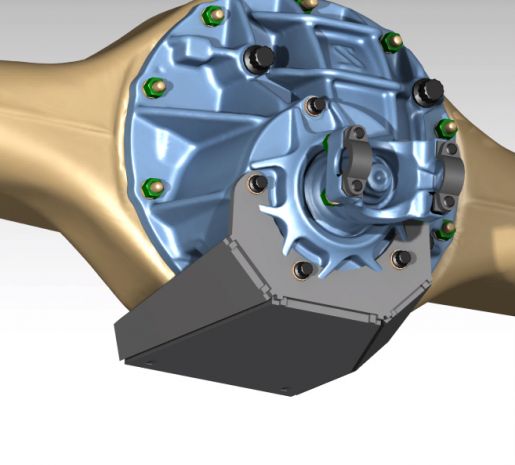

Stock 9" DIY Diff Skid Plate Plasma Table Friendly
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Ford 9" rear end |
|---|---|
| Part Family | Diff Skid / Pinion Guard |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are designed for a stock Ford 9" housing, so as long as yours is the factory housing you're good. If you're running something modified or a different brand housing, email us and we'll see if it'll work for your setup.
It's all flat plate, no bends needed, so you can cut everything right on your plasma table. Just make sure you follow the WPO during assembly to keep the strength in the part.
It includes both sets of tabs, so you're covered whether you're running a DIY rear truss or no truss. You just use the set that matches your specific build.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Stock 9" DIY Diff Skid Plate Plasma Table Friendly is $12.00.
This Stock 9" DIY Diff Skid Plate Plasma Table Friendly is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Stock Ford 9" Housing Components plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Stock Ford 9" Housing Components category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Rear End Components, including Stock Ford 9" Housing Components, all designed by working fab shops. Browse the Rear End Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
