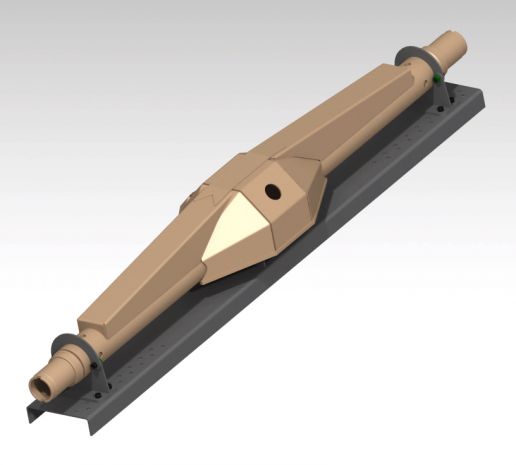

9" Rear End Housing Fixture Assembly from JEHC

You get four different tube hold down sets in this assembly: 4", 3.5", 3.25", and 3", so you're covered across a bunch of different housings.

It's a welding fixture for setting up and welding tubes and truss sections onto Ford 9" rear end housings. Basically it holds everything square while you build the rear end.

It's got provisions to bolt down to Tekk fixture tables for added rigidity when you're building a rear end. You can run them on your plasma, laser, or waterjet and cut the pieces, then bolt the fixture down for the strongest setup.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The 9" Rear End Housing Fixture Assembly from JEHC is $12.00.

This 9" Rear End Housing Fixture Assembly from JEHC is brought to you by JEHC. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

DIY Off Road has downloadable DXF cut files for 3.5" Desert Racing Fabricated Housings and Components from Tekk plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 3.5" Desert Racing Fabricated Housings and Components from Tekk category, or shoot us an email and we will point you to the right files for your build.

Yeah — DIY Off Road carries downloadable DXF cut files across Fabricated Housings from JEHC INC, including 3.5" Desert Racing Fabricated Housings and Components from Tekk, all designed by working fab shops. Browse the Fabricated Housings from JEHC INC section or email us and we will help you track down the right files.

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
