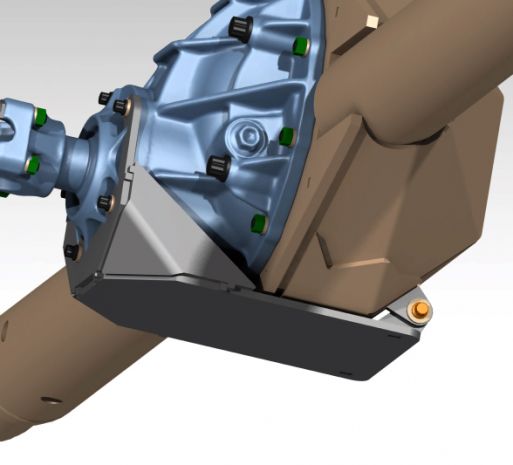

Fabricated 9" Housing Diff Skid Plate - Desert Racing Style
Diff Skid Plate assembly for the Fabricated Ford 9" housings from JEHC Consulting, 604-JEH-001 and 604-JEH-003 part numbers. These are simply eay to fabricate differential skid plates that complement desert racing, not rock crawling. They are designed to be the right amount of protection while not adding unecessary weight for a desert race application.
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Ford 9" rear end |
|---|---|
| Part Family | Diff Skid / Pinion Guard |
| Position | Rear suspension |
Frequently Asked Questions
These are drawn specifically for the JEHC fabricated Ford 9" housings, part numbers 604-JEH-001 and 604-JEH-003. If you're running a different housing, shoot us an email and we'll see if there's a file that works for your setup.
These aren't flat parts — the DXF gives you the cut profile but the plates are designed to be pressed/bent after cutting. You can run them on a plasma, laser, or waterjet, then bend them on a press to finish.
These are built for desert racing, so they're the right amount of protection without piling on weight for that kind of use — not really intended for rock crawling. If you need something beefier for rocks, email us and we can point you toward a better option.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Fabricated 9" Housing Diff Skid Plate - Desert Racing Style is $12.00.
This Fabricated 9" Housing Diff Skid Plate - Desert Racing Style is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 3.5" Desert Racing Fabricated Housings and Components from Tekk plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 3.5" Desert Racing Fabricated Housings and Components from Tekk category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Fabricated Housings from JEHC INC, including 3.5" Desert Racing Fabricated Housings and Components from Tekk, all designed by working fab shops. Browse the Fabricated Housings from JEHC INC section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
