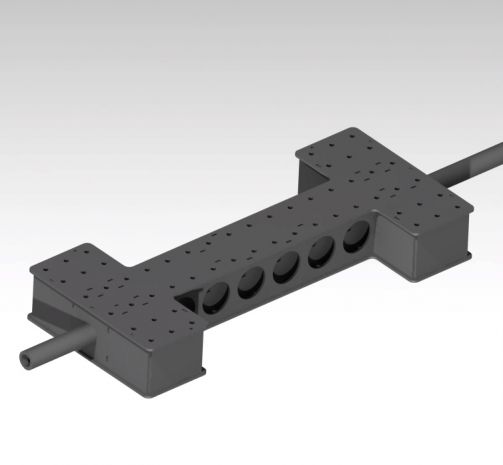

Metric DogBone Fixture 10mm holes on 50x50mm pattern (3/16" plate material)
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Frequently Asked Questions
These files are set up for 3/16" plate, so cut them from 3/16" material on your plasma, laser, or waterjet. That's what the pattern and shape are designed around.
These are metric — 10mm holes on a 50x50mm pattern. If you need a standard/imperial version, shoot us an email and we'll see if we've got a file that matches your setup.
Just the DXF cut files — this is a digital download, nothing physical ships. After payment you grab the files and run them on your own table or send them out to get cut and bent (press).
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Metric DogBone Fixture 10mm holes on 50x50mm pattern (3/16" plate material) is $100.00.
