Do these files cover both the 2-door JK and the 4-door JKU, or do I need a different file?

These plans are drawn up for the Jeep JK/JKU, so they're set for both the 2-door and 4-door. If you've got something else and aren't sure it'll work, shoot us an email and we'll check what we've got for your build.

What thickness steel should I run these on, and do they include the tire carrier parts too?

This set includes the rear Razor bumper plus the RazorBack tire carrier files. For thickness, go with what the cut files are drawn for and what your shop recommends for a rear bumper and carrier build — if you want a hand dialing it in, email us and we'll point you to a cutter.

Are these DXF files I can just drop on my plasma table, or is there assembly drawings too?

Yep, these are DXF cut files you download after purchase and run straight on a plasma, laser, or waterjet. After cutting you'll bend and weld it together into the finished bumper and carrier — if you don't have a table, email us and we'll recommend a shop to cut them for you.

How do I get the Jeep JK JKU Rear Razor Bumper With RazorBack Tire Carrier DXF build files after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the Jeep JK JKU Rear Razor Bumper With RazorBack Tire Carrier DXF build files cost?

The Jeep JK JKU Rear Razor Bumper With RazorBack Tire Carrier DXF build files is $80.00.

Who designs the Jeep JK JKU Rear Razor Bumper With RazorBack Tire Carrier DXF build files?

This Jeep JK JKU Rear Razor Bumper With RazorBack Tire Carrier DXF build files is brought to you by Blackwidowgear. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Fabricated Bumpers?

DIY Off Road has downloadable DXF cut files for Fabricated Bumpers plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Fabricated Bumpers category, or shoot us an email and we will point you to the right files for your build.

Do you have Bumpers, Frame Horns, and Body Mounts cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Bumpers, Frame Horns, and Body Mounts, including Fabricated Bumpers, all designed by working fab shops. Browse the Bumpers, Frame Horns, and Body Mounts section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.

Jeep JK Razorback

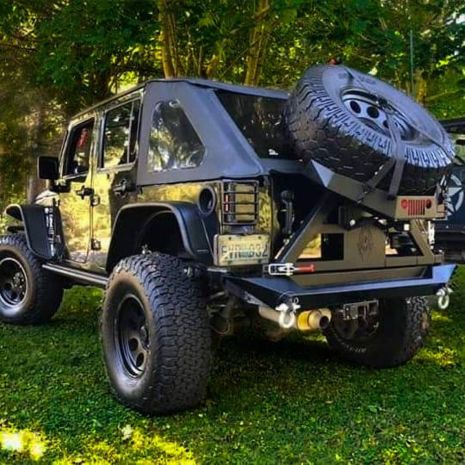

Jeep JK Rear Razor Bumper with Razorback Tire Carrier build plans. Full assembly instructions and build pics included. Fold and weld assembly. Holds up to a 38" tire. This product includes all of the DXF CNC files needed including the tire swing out. Full assembly instructions included. CNC ready (Plasma, laser, waterjet). Details about our build plans - Originally drawn in either Sketchup or Solidworks - Each file is saved as the original CAD and a DXF copy is exported - All our bumpers were made the same way, 3/16" Body with 1/4" mounts, winch plates etc. - Most of our full-size truck bumpers will take 3/4 of a sheet of 3/16" and a 1/4 sheet of 1/4" (+/-). - Our fold and weld designs allow you to easily bend the panels by hand. It assures ease of assembly by placing each piece where it needs to go. We have found since adopting this type of design that our support questions have dropped dramatically. - All of these designs have been built several times in house and sold to customers in both DIY and prebuilt forms. Proven designs that fit! - We provide you with the assembly instructions for each kit. We do suggest always building on the vehicle to ensure proper gapping and fitment. - All files are easily editable with your choice of CAD programs. - End product can be resold all we ask is you please do not resell the files. We all have to make a living :-) If you have an issue with something please let us know! mistakes can happen and if we have something wrong we would love the chance to know about and fix the issue.

Jeep JK JKU Rear Razor Bumper With RazorBack Tire Carrier DXF build files
