Jeep JK Front Winch Bumper Bumper Plans and Cut Files
Jeep JK/JKU Front Winch Bumper build plans.
Details

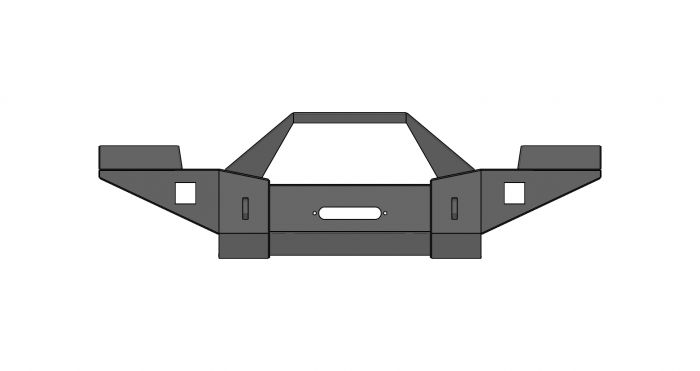

Our 08-17 Jeep JK/JKU front winch bumper build files. Will handle up to a 17,500lb winch and aftermarket fog pods. This is the digital DXF files to duplicate this bumper not a physical bumper. Can be cut on any CNC table (Plasma, Laser, Waterjet). Comes with full assembly instructions.
Details about our build plans
- Originally drawn in either Sketchup or MasterCAM
- Each file is saved as the original CAD and a DXF copy is exported
- All our bumpers were made the same way, 3/16" Body with 1/4" mounts, winch plates etc.
- Most of our full-size truck bumpers will take 3/4 of a sheet of 3/16" and a 1/4 sheet of 1/4" (+/-).
- Our fold and weld designs allow you to easily bend the panels by hand. It assures ease of assembly by placing each piece where it needs to go. We have found since adopting this type of design that our support questions have dropped dramatically.
- All of these designs have been built several times in house and sold to customers in both DIY and prebuilt forms. Proven designs that fit!
- We provide you with the assembly instructions for each kit. We do suggest always building on the vehicle to ensure proper gapping and fitment.
- All files are easily editable with your choice of CAD programs.
- End product can be resold all we ask is you please do not resell the files. We all have to make a living :-)
If you have an issue with something please let us know! mistakes can happen and if we have something wrong we would love the chance to know about and fix the issue.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Jeep JK / JKU (07-18) |
|---|---|
| Part Family | Bumpers / Tire Carriers / Winch Inserts |
| Position | Front suspension |
Frequently Asked Questions
Yep, these plans are made for the Jeep JK/JKU, so they'll cover both the 2-door and 4-door. If you've got a specific year or trim concern, shoot us an email and we'll confirm it works for your rig.
The plans are designed for a front winch bumper build, but the exact material thickness isn't listed here. Email us and we'll get you the recommended thickness so your bumper holds up to winch loads.
These come as downloadable cut files plus build plans, so you can run the DXFs on your plasma, laser, or waterjet and weld it up yourself. After payment you'll get the files to download — nothing physical ships.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Jeep JK Front Winch Bumper Bumper Plans and Cut Files is $60.00.
This Jeep JK Front Winch Bumper Bumper Plans and Cut Files is brought to you by Blackwidowgear. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Jeep JK 2007-2018 plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Jeep JK 2007-2018 category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Vehicle Specific Components, including Jeep JK 2007-2018, all designed by working fab shops. Browse the Vehicle Specific Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
