GMT900 SILVERADO 99-06 1500 FRONT I-BEAM BULKHEAD
Details

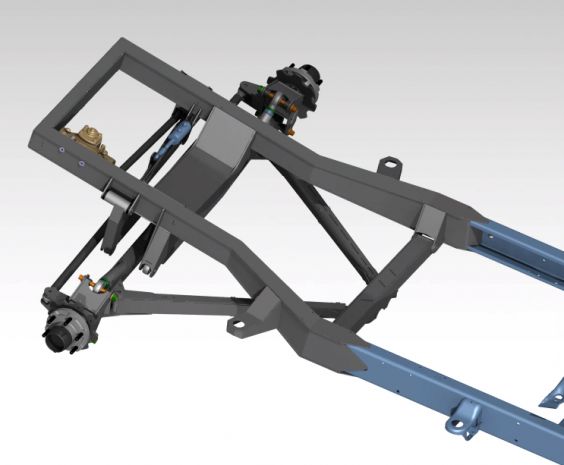

These plasma table friendly bulkheads are designed to graft onto an GMT900 (07-13 SILVERADO 1500) chassis or utilized to start a new one from the ground up. Setup for the Universal Beams from JEHC they provide the perfect starting point with all the hard work figured out for you, the geometry, and the steering. They feature center mounted radius arms along with equal length steering setup from a 4 bolt Sag Box and 4.5” throw ram. The uprights are universal in that they can be mated with either stock D44 components or any of the aftermarket race hub setups (designed for the JEHC INC snout blocks, sold separately under the Fabrication/Hard Parts section of the sire). The entire front end is designed with a 10Deg rake built into it for optimal performance and ground clearance, the rear section of the bulkhead, the radius arm mount is designed to be mounted level in the chassis.
This cutfile pack includes the following: Beams, Radius Arms, Uprights, Steering upright tabs, Swingers, Pitman Arm, Frame/Bulkhead, and Crosslink Cutfiles along with ESAM files for assembly.
After purchase JEHC INC will reach to you to confirm the below options to ensure you get the files per the setup you want to run.
TrackWidth– This setup comes in two different trackwidths, either 88”+ range or 91+” plus range.
Beam Options – We have two different Beam/Upright options based on the tire size you plan on running, for the 37” tires we suggest the 1.25” beams and for anything larger we suggest the 1.5” bearing beams.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Chevy/GMC Silverado/Sierra 1500 GMT900 (07-13) |
|---|---|
| Part Family | Front Bulkhead / Front-End Assemblies (tube chassis front clip) |
| Position | Front suspension |
| Build System | I-beam / Twin I-Beam (TTB) |
Frequently Asked Questions
The pack includes the Beams, Radius Arms, Uprights, Steering upright tabs, Swingers, Pitman Arm, Frame/Bulkhead, and Crosslink cutfiles, plus ESAM files for assembly. It's set up for the Universal Beams from JEHC, and the snout blocks for the race hub setups are sold separately under the Fabrication/Hard Parts section.
For anything bigger than 37s we suggest the 1.5" bearing beams, so 40s would run those. After you buy, JEHC will reach out to confirm your beam option and trackwidth so you get the right files for your setup.
The uprights are universal, so they'll mate with either stock D44 components or any of the aftermarket race hub setups. If you go the race hub route they're designed around the JEHC snout blocks, which you'd grab separately.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The GMT900 SILVERADO 99-06 1500 FRONT I-BEAM BULKHEAD is $750.00.
This GMT900 SILVERADO 99-06 1500 FRONT I-BEAM BULKHEAD is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for GMT900 Suspension Kits from JEHC plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the GMT900 Suspension Kits from JEHC category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across 07-13 Silverado 1500 GMT900, including GMT900 Suspension Kits from JEHC, all designed by working fab shops. Browse the 07-13 Silverado 1500 GMT900 section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
