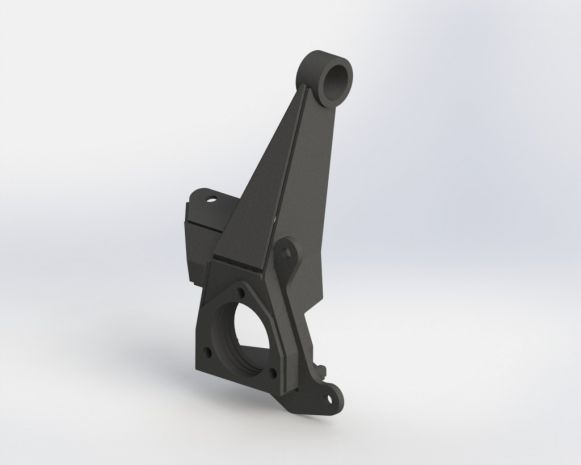

GMT900 PTF Silverado 1500 07-13 2WD Front Upright - Plasma Table Friendly
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no/minimal bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Frequently Asked Questions
These files are designed for the 07-13 GMT900 Silverado 1500 2WD long travel setup specifically. If you're running a 4x4, shoot us an email and we'll check whether another file in the GMT900 lineup will work for your build.
These are Plasma Table Friendly, meaning they're designed with no or minimal bends so it's all flat plate that cuts easy on a plasma, laser, or waterjet. Just make sure you follow the included WPO steps so you keep the strength in the part during assembly.
You're buying the digital DXF cutting files for the upright, not a physical part. Take them to your plasma table or have a shop cut them, then assemble and weld per the WPO, and reach out if you want a recommendation on a shop to cut them for you.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The GMT900 PTF Silverado 1500 07-13 2WD Front Upright - Plasma Table Friendly is $515.00.
This GMT900 PTF Silverado 1500 07-13 2WD Front Upright - Plasma Table Friendly is brought to you by Dirty BFabwerx. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for DBF GMT900 Long Travel Kit - Plasma Table Friendly plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the DBF GMT900 Long Travel Kit - Plasma Table Friendly category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across 07-13 Silverado 1500 GMT900, including DBF GMT900 Long Travel Kit - Plasma Table Friendly, all designed by working fab shops. Browse the 07-13 Silverado 1500 GMT900 section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
