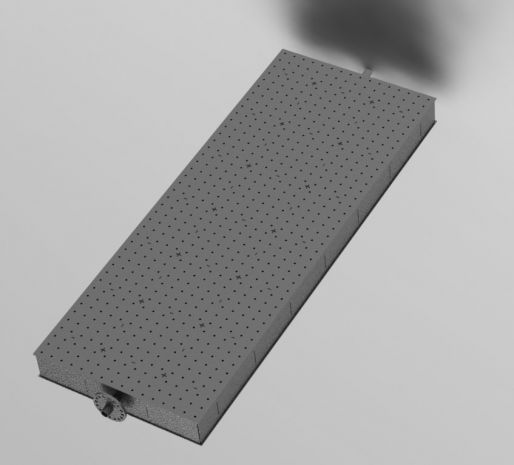

82"x30" IMPERIAL 2"x2" Pattern Table

These are downloadable DXF cut files, not a finished table. You run them on your plasma, laser, or waterjet and weld it together yourself.

The files give you the 82"x30" boxed honeycomb layout with the 2"x2" bolt pattern, but we don't spec a set material thickness in the file. Email us and we can point you to what shops typically run for a fixture table this size, or connect you with the designer.

These are drawn for the 82"x30" Imperial layout with the 2"x2" pattern. If you need a different footprint, email us and we'll see if another file fits your build or set you up with the designer for a custom one.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The 82"x30" IMPERIAL 2"x2" Pattern Table is $82.00.

The 82"x30" IMPERIAL 2"x2" Pattern Table is offered through the DIY Off Road marketplace, featuring cut-file designs from fabricators including All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

DIY Off Road has downloadable DXF cut files for Imperial JEHC Tables plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Imperial JEHC Tables category, or shoot us an email and we will point you to the right files for your build.

Yeah — DIY Off Road carries downloadable DXF cut files across JEHC Fixture Tables, including Imperial JEHC Tables, all designed by working fab shops. Browse the JEHC Fixture Tables section or email us and we will help you track down the right files.

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
