7 DEG Universal Radius Arm Mount for Universal Beams - PTF

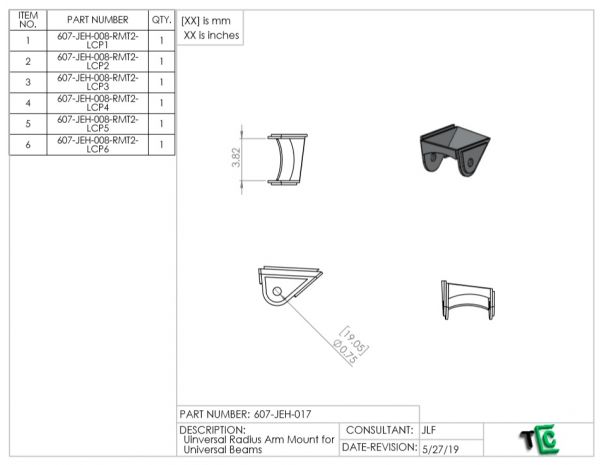

7 Deg radius arm mount for the Universal Beams from JEHC. This will set the caster to roughly 7 degrees but you can easily adjust or sand the mount to change the caster.
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Radius-Arm / Beam Chassis Mounts (caster + offset set) |
| Position | Front suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are PTF (Plasma Table Friendly), so they're designed with little to no bends, mostly flat plate. That makes them easy to cut and assemble on a plasma table, just make sure you follow the WPO so the strength stays where it needs to be.
This mount is designed specifically for the Universal Beams from JEHC. If you're running a different beam, shoot us an email and we'll see if there's a file that'll work for your setup.
Nope, it sets you to roughly 7 degrees out of the box, but you can easily adjust or sand the mount to dial in the caster you want for your build.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 7 DEG Universal Radius Arm Mount for Universal Beams - PTF is $12.00.
This 7 DEG Universal Radius Arm Mount for Universal Beams - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 1.5" Uni-Ball Lower Universal Beams and Uprights plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 1.5" Uni-Ball Lower Universal Beams and Uprights category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Universal Beam Components, including 1.5" Uni-Ball Lower Universal Beams and Uprights, all designed by working fab shops. Browse the Universal Beam Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
