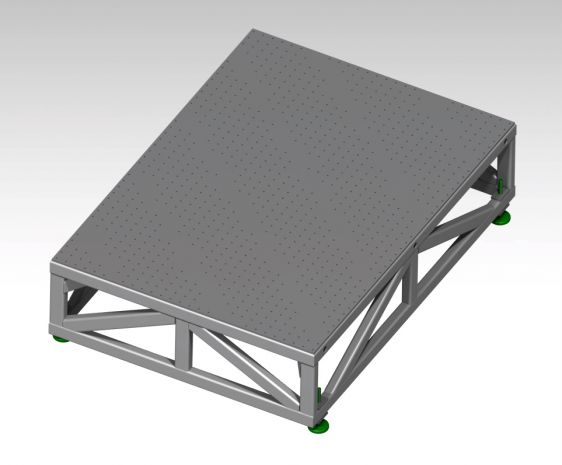

6'6" x 5' Chassis Table with 2"x 2" Pattern
The 4 feet are designed for ¾” shank adjustable casters or solid mounts. The tables are also designed with alignment pins (standard 1” from Mcmaster) machined to perfection for the exact fit, when stacking tables together you can easily align them and bolt them for that perfect bolt pattern extension. This allows for the continuation of the bolt pattern across the distance of the table (usually 20’) when fixturing larger weldments like a race truck chassis.
All the tubes are designed to be laser cut with tab/slot style interlocking for the perfect fitment during fabrication of the table, including the tubes. Contact Us for any questions on where to get this cut.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Frequently Asked Questions
You get the full set of DXF files including the tubes, which are designed with tab/slot interlocking so everything lines up perfect during the build. The main structure tubes are designed from 2x3" .250 wall material with a 3/8" main plate and cross ribbing.
Yep, that's exactly what they're built for. The tables use standard 1" alignment pins from McMaster machined for an exact fit, so you can stack and bolt them together and continue the 2"x2" bolt pattern across the distance (usually 20') for those longer weldments like a chassis.
The holes are lasered to the perfect diameter for a 3/8" tap on a standard 2"x2" pattern. The 4 feet are already designed for 3/4" shank adjustable casters or solid mounts, so you can run it on wheels or bolt it down solid.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 6'6" x 5' Chassis Table with 2"x 2" Pattern is $600.00.
